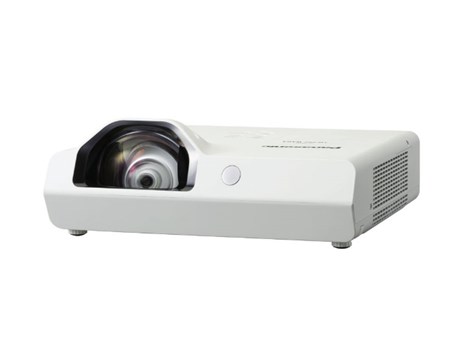

ویدئو پروژکتور پاناسونیک PT-TW342

 مشخصات:

Panel Type                 0.59" LCD x 3
Lamp                          230W x 1
Brightness                  3,300 lumens
Lens                           Fixed (0.46:1 throw ratio), F1.8, f6.08mm
Contrast (Full on / Full off)    12000:1
Resolution (Native / maximum)          WXGA
Video Compatibility  PAL, PAL-N, SECAM, NTSC, NTSC4.43, PAL-M, PAL60
Screen Size                 50" - 100"
Keystone Correction Range    Vertical ±15°; Horizontal ±15°
Weight                       Approx 3.9kg
Dimensions (W x H x D)        335 x 134.1 x 329 mm
Power Consumption  300W
Terminals                    HDMI (19 pin x 1)
PC in (D-sub HD 15-pin x 1)
PC in (D-sub HD 15-pin x 1)
Monitor out (D-sub HD 15-pin x 1)
Video in (Pin jack x 1)
Audio in (M3 x 1)
Audio in (Pin jack x 2, L,R)
Audio out (M3 x 1 (L-R x 1)
LAN (RJ45 x 1), 10Base-T/100Base-TX, PJLink (class 1) compatible
Serial in (D-sub 9-pin (female) x 1)
USB-Type A: Memory Viewer
USB-Type B: USB display
Replacement Lamp    ET-LAL500
Optional Accessories ET-RFL300 (Replacement filter)
ET-PKL100H (High ceiling mount bracket)
ET-PKL100S (Low ceiling mount bracket)
ET-PKL430B(Bracket assembly)
ET-WML100 wireless module


ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:[phone]

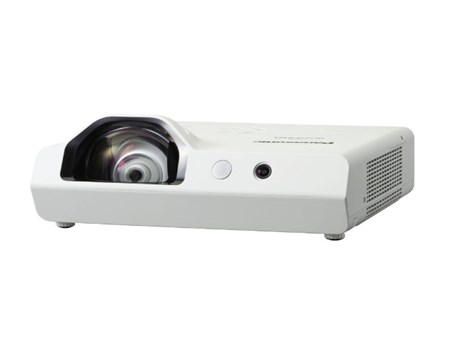

ویدئو پروژکتور پاناسونیکPT-TW343R

ویدئو پروژکتور پاناسونیکPT-TW343R

Panel Type                 0.59" LCD x 3
Lamp                          230W x 1
Brightness                  3,300 lumens
Lens                           Fixed (0.46:1 throw ratio), F1.8, f6.08mm
Contrast (Full on / Full off)    12000:1
Resolution (Native / maximum)          WXGA
Video Compatibility  PAL, PAL-N, SECAM, NTSC, NTSC4.43, PAL-M, PAL60
Screen Size                 50" - 100"
Keystone Correction Range    Vertical ±15°; Horizontal ±15°
Weight                       Approx 3.9kg
Dimensions (W x H x D)        335 x 134.1 x 329 mm
Power Consumption  300W
Terminals                    HDMI (19 pin x 1)
PC in (D-sub HD 15-pin x 1)
PC in (D-sub HD 15-pin x 1)
Monitor out (D-sub HD 15-pin x 1)
Video in (Pin jack x 1)
Audio in (M3 x 1)
Audio in (Pin jack x 2, L,R)
Audio out (M3 x 1 (L-R x 1)
LAN (RJ45 x 1), 10Base-T/100Base-TX, PJLink (class 1) compatible
Serial in (D-sub 9-pin (female) x 1)
USB-Type A: Memory Viewer
USB-Type B: USB display
Mini USB x 1: for Interaction function
Replacement Lamp    ET-LAL500
Optional Accessories ET-PEN100 (interactive pen)
ET-PNT100 (interactive pointer)
ET-RFL300 (Replacement filter)
ET-PKL100H (High ceiling mount bracket)
ET-PKL100S (Low ceiling mount bracket)
ET-PKL430B(Bracket assembly)
ET-WML100 wireless module


ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:[phone]

ویدئو پروژکتور پاناسونیکPT-CW331R

ویدئو پروژکتور پاناسونیکPT-CW331R


DLP™ chip           Panel size                16.5 mm (0.65 in) diagonal
(16:10 aspect ratio)
                          Display method        DLP™ chip x 1, DLP™ projection system
                          Pixels                     1,024,000 (1,280 x 800) pixels
Lamp                                               280 W UHM lamp
(The lamp replacement cycle is 4,000 hours)
Color reproducibility                           Full color (16,777,216 colors)
Brightness                                        3,100 lm
Center-to-corner uniformity                  80 %
Contrast ratio                                    8,000:1 (full on/off) (During RGB signal input, lamp power: Normal)
Resolution                                        1,280 x 800 pixels
(Input signals that exceed this resolution
will be converted to 1,280 x 800 pixels.)
Lens                                                Fixed (0.35:1 throw ratio),
manual focus F = 2.6, f = -5.27 mm
Screen size (diagonal)                         1.78-2.54 m (70-100 in)
(16:10 aspect ratio)
Scanning frequency
                          HDMI                      (Horizontal) 15-100 kHz; (Vertical) 24-120 Hz; (Dot clock) 25-162 MHz
                          RGB (analog)           (Horizontal) 15-100 kHz; (Vertical) 24-120 Hz; (Dot clock) 162 MHz or lower
                          YPBPR (YCBCR)       fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]     fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
                          Video / S-Video         (fH) 15.75/15.63 kHz (fV) 50/60 Hz [NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM]
Terminals
                          HDMI IN                  HDMI 19-pin x 1(Deep color, compatible with HDCP),
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
                          COMPUTER IN 1       D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1]
                          COMPUTER IN 2       D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1]
                          MONITOR OUT         D-sub HD 15-pin (female) x 1 (The signal selected from computer input 1/2 is output.)
                          VIDEO IN                 Pin jack x 1
                          S-VIDEO IN              Mini DIN 4-pin x 1
                          COMPUTER 1 AUDIO IN   M3 x 1 (L-R x 1)
                          COMPUTER 2 AUDIO IN   M3 x 1 (L-R x 1)
                          VIDEO AUDIO IN       Pin jack x 2 (L x 1, R x 1)
                          S-VIDEO AUDIO IN    Pin jack x 2 (L x 1, R x 1)
                          AUDIO OUT             M3 x 1 (L-R x 1) (variable)
                          SERIAL IN               D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
                          LAN                       RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T,
compliant with PJLink™ (class 1))
                          Mini USB                 1 for servicemen (for interactive function)
Built-in speaker                                  7cm x 3cm oval shape x 1, output power 10 W (monaural)
Keystone correction range                    Vertical: ±15°
Installation                                        Ceiling/floor, front/rear (Menu setting)
Cabinet materials                                Molded plastic
Power supply                                     100-240 V AC, 50/60 Hz
Power consumption                            340 W
(0.5 W when
STANDBY MODE set to
ECO,*1 6.0 W when
STANDBY MODE set to
NORMAL.)
Power cord length                              3.0 m (9'10")
Dimensions (W x H x D)                        357 x 250 x 367 mm (14-1/16 x 9-27/32 x 14-29/64 in)
(with legs at shortest position)
Weight                                             Approximately
7.8 kg (17.2 lbs)
Operation Noise                                 37 dB
(Lamp power: Normal);
33 dB (Lamp power: Eco)
Operating temperature                         5°C-40°C [41°F-104°F] (Less than 762 m [2,500 ft] above sea level);
5°C-35°C [41°F-95°F] (between 762 and 1,524 m [2,500 ft and 5,000 ft] above sea level);
5°C-30°C [41°F-86°F] (between 1,524 and 3,048 m [5,000 ft and 10,000 ft] above sea level)
Operating humidity                             20 %-80 % (no condensation)


ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:[phone]

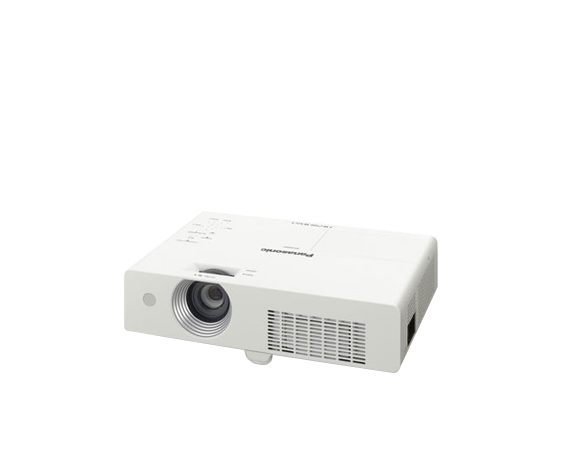

ویدئو پروژکتور پاناسونیک PT-LW25H

 ویدئو پروژکتور پاناسونیک PT-LW25H


General  Power supply                            100-240 V AC, 50/60 Hz
              Power consumption                  297 W (0.47 W in Eco standby mode*1, 8.6 W in Network standby mode.)
              LCD panel  Panel size              15 mm (0.59 inches) diagonal (16:10 aspect ratio)
                                  Display method     Transparent LCD panel (x 3, R/G/B)
                                  Pixels                     1,024,000 (1,280 × 800) x 3, total of 3,072,000 pixels
              Lens                                          1.2x manual zoom, manual focus, F 2.10-2.25, f 19.11-22.94 mm
              Lamp                                         230 W × 1, lamp replacement cycle (lamp power: High, Normal/Eco): 3,000 hours/4,000 hours*2
              Screen size (diagonal)               0.76-7.62 m (30-300 inch)
              Brightness*3                             2,500 lm (lamp power: High)
              Center-to-corner uniformity*3 85%
              Contrast*3                                3,000:1 (full on/full off, lamp power: High, Iris: on)
              Resolution                                 1,280 × 800 pixels*4
              Scanning frequency                  RGB (analog)         fH: 15-100 kHz, fV: 50-100 Hz, dot clock: 140 MHz or lower
(Signals exceeding the dot clock rate of 140 MHz are downsampled.)
                                  YPBPR (YCBCR)       fH: 15.75 kHz, fV: 60 Hz [480i(525i)]
fH: 31.50 kHz, fV: 60 Hz [480p(525p)]
fH: 45.00 kHz, fV: 60 Hz [720(750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080(1125)/60i]
fH: 15.63 kHz, fV: 50 Hz [576i(625i)]
fH: 31.25 kHz, fV: 50 Hz [576p(625p)]
fH: 37.50 kHz, fV: 50 Hz [720(750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080(1125)/50i]
                                  VIDEO/S-VIDEO       fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
              Optical axis shift                       13:1
              Keystone correction range        Vertical: ±30° (±20° when Real-Time Keystone)
              Installation                                Ceiling/floor, front/rear
              Terminals    COMPUTER IN 1/ S-VIDEO IN       D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR /S-VIDEO x 1)
(The D-Sub/S-VIDEO conversion cable ET-ADSV is required for inputting S-VIDEO signals.)
                                  COMPUTER IN 2/ MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB×1), (input/output selectable using on-screen menu)
(When Monitor Out is selected, the COMPUTER IN 1 signal is output.)
                                  VIDEO IN            RCA pin × 1 (Composite VIDEO)
                                  AUDIO IN           RCA pin x 2 (L-R x 1) for VIDEO input
                                  COMPUTER AUDIO IN        M3 × 1 (L-R x 1)
                                  SERIAL IN          D-sub 9-pin (male) × 1 for external control (RS-232C compliant)
                                  LAN                      RJ-45 × 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™ (class 1))
              Built-in speaker                         3.2 cm round shape × 1, output power: 1 W (monaural)
              Noise level                                37.0 dB (lamp power: High), 34.1 dB (lamp power: Normal), 29.0 dB (lamp power: Eco)
              Cabinet materials                      Molded plastic
              Dimensions (W × H × D)         349 x 105 x 247 mm (13.7" x 4.1" x 9.7")
(with legs at shortest position, not including protruding parts)
              Weight                                      Approximately 2.99 kg (6.59 lbs)
              Operating environment             Operating temperature: 5°C-35°C (41°F-95°F),
operating humidity: 20%-80% (no condensation)

NOTE                                                     *1 When Standby mode is set to Eco, network functions such as standby on via LAN are not available. Also, only certain commands can be received for external control using the serial terminal.
*2 The values given for the recommended lamp replacement cycles are maximum. The usage environment affects the lamp replacement cycle.
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Input signals that exceed this resolution will be converted to 1,280 x 800 pixels.
*5 Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.



 ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:[phone]

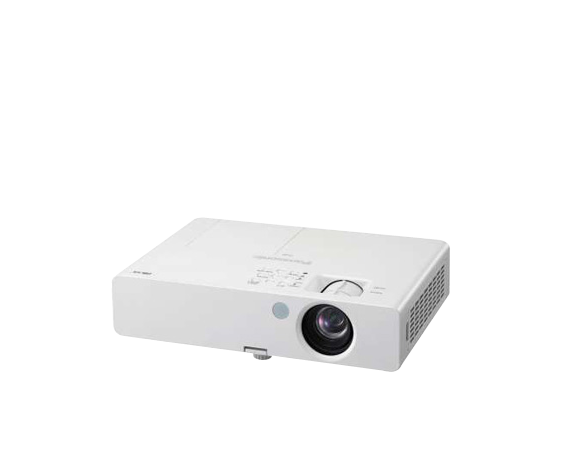

ویدئو پروژکتور پاناسونیک PT-LB1V

ویدئو پروژکتور پاناسونیک PT-LB1V

General  Power supply                         100–240 V AC, 50/60 Hz
              Power consumption               290 W 0.4 W at 220-240 V AC, 0.3 W at 100-120 V AC when standby mode set to eco*1, 15 W when standby mode set to normal, 18 W when standby mode set to normal and audio monitor out.
              Optical system                       Dichroic mirror separation/prism synthesis system
              LCD panel   Panel size          16 mm (0.63") diagonal, 4:3 aspect ratio
                                   Display method           Transparent LCD panel (x 3, R/G/B)
                                   Drive method   Active matrix
                                   Pixels                786,432 (1,024 x 768) x 3, total of 2,359,296 pixels
                                   Pixel configuration      Stripe
              Lens                                       Manual zoom (1:1-1:1.2), manual focus, F 2.00-2.20, f 19.22-22.68 mm, throw ratio: 1.5-1.7:1
              Lamp                                     220 W UHM lamp (The lamp replacement cycle is 5,000 hours.*2)
              Projection size                       0.84–7.62 m (33–300 inches) diagonally (4:3 aspect ratio)
              Colors                                    Full color (16,777,216 colors)
              Brightness*3                         2,200 lumens
              Center-to-corner uniformity ratio*3 85%
              Contrast ratio*3                    600:1 (full on/full off)
              Resolution (RGB)*4             1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.)
              Scanning frequency               RGB   Horizontal: 15–91 kHz, Vertical: 50–85 Hz
                                   YPBPR             480i (525i): fH 15.75 kHz; fv 60 Hz
576i (625i): fH 15.63 kHz; fv 50 Hz
480p (525p): fH 31.50 kHz; fv 60 Hz
576p (625p): fH 31.25 kHz; fv 50 Hz
720 (750)/60p: fH 45.00 kHz; fv 60 Hz
720 (750)/50p: fH 37.50 kHz; fv 50 Hz
1080 (1125)/60i: fH 33.75 kHz; fv 60 Hz
1080 (1125)/50i: fH 28.13 kHz; fv 50 Hz
1080 (1125)/60p: fH 67.50 kHz; fv 60 Hz
1080 (1125)/50p: fH 56.25 kHz; fv 50 Hz
                                   S-Video/ Video           NTSC, NTSC4.43, PAL-M, PAL60: fH15.75 kHz; fv 60 Hz
PAL, SECAM, PAL-N: fH15.63 kHz; fv 50 Hz
              Optical axis shift                   5:1 (fixed)
              Keystone correction range    Vertical: approx. ±30°
              On-screen menu                    17 languages: English, French, German, Spanish, Italian, Korean, Russian, Chinese, Japanese, Swedish, Norwegian, Danish, Portuguese, Polish, Hungarian, Czech, and Thai
              Installation                            Front/rear, ceiling/desk (menu selection)
              Built-in speaker                     1 W (monaural), Size: 4 x 2 cm (1-1/16" x 25/32") x 1, oval
              Terminals     COMPUTER (RGB) 1 IN      D-sub HD 15-pin (female) x 1
RGB signal:
G: 0.7 V [p-p] (1.0 V [p-p] for sync on green signals), 75 ohms, R, B: 0.7 V [p-p], 75 ohms, HD/SYNC, VD: TTL (positive/negative polarity compatible)
YPBPR signal:
Y: 1.0 V [p-p] (including sync signal), 75 ohms, PB, PR: 0.7 V [p-p], 75 ohms
                                   COMPUTER (RGB) 2 IN      D-sub HD 15-pin (female) x 1
RGB signal:
G: 0.7 V [p-p] (1.0 V [p-p] for sync on green signals), 75 ohms, R, B: 0.7 V [p-p], 75 ohms, HD/SYNC, VD: TTL (positive/negative polarity compatible)
YPBPR signal:
Y: 1.0 V [p-p] (including sync signal), 75 ohms, PB, PR: 0.7 V [p-p], 75 ohms
                                   VIDEO IN       RCA pin x 1, 1.0 V [p-p], 75 ohms
                                   S-VIDEO IN    Mini DIN 4-pin x 1, Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 ohms
                                   AUDIO IN       M3 (L, R) x 2, 0.5 V [rms]
                                   VARIABLE AUDIO OUT    M3 (L, R) x 1, 0 –2.0 V [rms]
                                   SERIAL           D-sub 9-pin x 1, for external control (RS-232C compliant)
                                   LAN                 RJ-45 x 1, compatible with PJLink™ (class 1), 10BASE-T/100BASE-TX
              Power cord length                 2m (6.6)
              Cabinet material                    Moulded plastic (PC+ABS)
              Dimensions (W x H x D)*5  307 x 69 x 210 mm (12-3/32" x 2-23/32" x 8-9/32")
              Weight*6                               Approx. 2.3 kg (5.07 lbs.)
              Operating environment         Temperature: 0°–40°C (32°–104°F) *7
Humidity: 20%–80% (no condensation)

              Optional accessories              ET-PKB2       Ceiling mount bracket
                                   ET-KFB2          Highly durable filter unit
                                   ET-RFB2          Replacement air filter for ET-KFB2
                                   ET-LAB2         Replacement lamp unit
NOTE                                                  *1: When the standby mode is set to eco, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2: This value is calculated by continuously turning the lamp on for 2 hours and off for 0.25 hour. The lamp replacement cycle will decrease if the lamp is turned on/off more frequently, or if it is left on for longer intervals.
*3: Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4: Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.
*5: Protruding parts not included.
*6: Average value (excluding lens cap). May differ depending on models.
*7: The operating temperature range is 0°C (32°F) to 35°C (95°F) when used in High-Altitude mode (1,400 to 2,700 m (4,593 to 8,858 feet)). Also, in Lamp Normal mode, if the ambient temperature exceeds 35°C/95°F (30°C/85°F in High-Altitude mode), the light output may be reduced approximately 30% to protect the projector.


ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:[phone]
