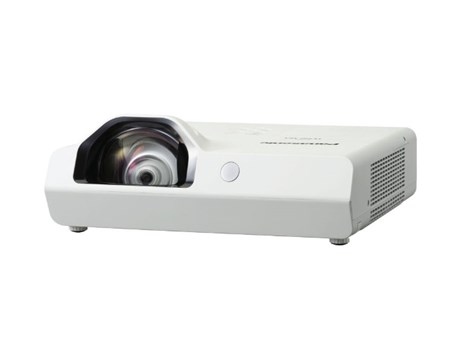

معرفی و توضیح انواع ویدئو پروژکتورهای پاناسونیکویدئو پروژکتور پاناسونیک PT-TX402
مشخصات:
Panel Type 0.63" LCD x 3
Lamp 230W x 1
Brightness 3,800 lumens
Lens Fixed (0.46:1 throw ratio), F1.8, f6.08mm
Contrast (Full on / Full off) 12000:1
Resolution (Native / maximum) XGA
Video Compatibility PAL, PAL-N, SECAM, NTSC, NTSC4.43, PAL-M, PAL60
Screen Size 50" - 100"
Keystone Correction Range Vertical ±15°; Horizontal ±15°
Weight Approx 3.9kg
Dimensions (W x H x D) 335 x 134.1 x 329 mm
Power Consumption 300W
Terminals HDMI (19 pin x 1)
PC in (D-sub HD 15-pin x 1)
PC in (D-sub HD 15-pin x 1)
Monitor out (D-sub HD 15-pin x 1)
Video in (Pin jack x 1)
Audio in (M3 x 1)
Audio in (Pin jack x 2, L,R)
Audio out (M3 x 1 (L-R x 1)
LAN (RJ45 x 1), 10Base-T/100Base-TX, PJLink (class 1) compatible
Serial in (D-sub 9-pin (female) x 1)
USB-Type A: Memory Viewer
USB-Type B: USB display
Replacement Lamp ET-LAL500
Optional Accessories ET-RFL300 (Replacement filter)
ET-PKL100H (High ceiling mount bracket)
ET-PKL100S (Low ceiling mount bracket)
ET-PKL430B(Bracket assembly)
ET-WML100 wireless module
Lamp 230W x 1
Brightness 3,800 lumens
Lens Fixed (0.46:1 throw ratio), F1.8, f6.08mm
Contrast (Full on / Full off) 12000:1
Resolution (Native / maximum) XGA
Video Compatibility PAL, PAL-N, SECAM, NTSC, NTSC4.43, PAL-M, PAL60
Screen Size 50" - 100"
Keystone Correction Range Vertical ±15°; Horizontal ±15°
Weight Approx 3.9kg
Dimensions (W x H x D) 335 x 134.1 x 329 mm
Power Consumption 300W
Terminals HDMI (19 pin x 1)
PC in (D-sub HD 15-pin x 1)
PC in (D-sub HD 15-pin x 1)
Monitor out (D-sub HD 15-pin x 1)
Video in (Pin jack x 1)
Audio in (M3 x 1)
Audio in (Pin jack x 2, L,R)
Audio out (M3 x 1 (L-R x 1)
LAN (RJ45 x 1), 10Base-T/100Base-TX, PJLink (class 1) compatible
Serial in (D-sub 9-pin (female) x 1)
USB-Type A: Memory Viewer
USB-Type B: USB display
Replacement Lamp ET-LAL500
Optional Accessories ET-RFL300 (Replacement filter)
ET-PKL100H (High ceiling mount bracket)
ET-PKL100S (Low ceiling mount bracket)
ET-PKL430B(Bracket assembly)
ET-WML100 wireless module
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100

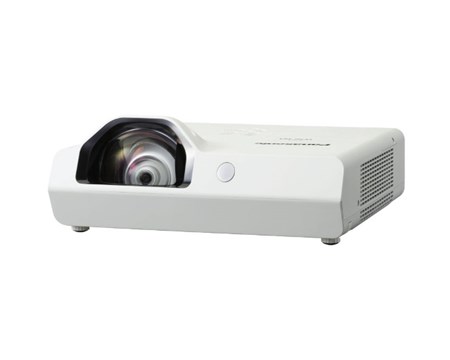

ویدئو پروژکتور پاناسونیک PT-TW342
مشخصات:
Panel Type 0.59" LCD x 3
Lamp 230W x 1
Brightness 3,300 lumens
Lens Fixed (0.46:1 throw ratio), F1.8, f6.08mm
Contrast (Full on / Full off) 12000:1
Resolution (Native / maximum) WXGA
Video Compatibility PAL, PAL-N, SECAM, NTSC, NTSC4.43, PAL-M, PAL60
Screen Size 50" - 100"
Keystone Correction Range Vertical ±15°; Horizontal ±15°
Weight Approx 3.9kg
Dimensions (W x H x D) 335 x 134.1 x 329 mm
Power Consumption 300W
Terminals HDMI (19 pin x 1)
PC in (D-sub HD 15-pin x 1)
PC in (D-sub HD 15-pin x 1)
Monitor out (D-sub HD 15-pin x 1)
Video in (Pin jack x 1)
Audio in (M3 x 1)
Audio in (Pin jack x 2, L,R)
Audio out (M3 x 1 (L-R x 1)
LAN (RJ45 x 1), 10Base-T/100Base-TX, PJLink (class 1) compatible
Serial in (D-sub 9-pin (female) x 1)
USB-Type A: Memory Viewer
USB-Type B: USB display
Replacement Lamp ET-LAL500
Optional Accessories ET-RFL300 (Replacement filter)
ET-PKL100H (High ceiling mount bracket)
ET-PKL100S (Low ceiling mount bracket)
ET-PKL430B(Bracket assembly)
ET-WML100 wireless module
Panel Type 0.59" LCD x 3
Lamp 230W x 1
Brightness 3,300 lumens
Lens Fixed (0.46:1 throw ratio), F1.8, f6.08mm
Contrast (Full on / Full off) 12000:1
Resolution (Native / maximum) WXGA
Video Compatibility PAL, PAL-N, SECAM, NTSC, NTSC4.43, PAL-M, PAL60
Screen Size 50" - 100"
Keystone Correction Range Vertical ±15°; Horizontal ±15°
Weight Approx 3.9kg
Dimensions (W x H x D) 335 x 134.1 x 329 mm
Power Consumption 300W
Terminals HDMI (19 pin x 1)
PC in (D-sub HD 15-pin x 1)
PC in (D-sub HD 15-pin x 1)
Monitor out (D-sub HD 15-pin x 1)
Video in (Pin jack x 1)
Audio in (M3 x 1)
Audio in (Pin jack x 2, L,R)
Audio out (M3 x 1 (L-R x 1)
LAN (RJ45 x 1), 10Base-T/100Base-TX, PJLink (class 1) compatible
Serial in (D-sub 9-pin (female) x 1)
USB-Type A: Memory Viewer
USB-Type B: USB display
Replacement Lamp ET-LAL500
Optional Accessories ET-RFL300 (Replacement filter)
ET-PKL100H (High ceiling mount bracket)
ET-PKL100S (Low ceiling mount bracket)
ET-PKL430B(Bracket assembly)
ET-WML100 wireless module
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100
ویدئو پروژکتور پاناسونیکPT-TW343R
ویدئو پروژکتور پاناسونیکPT-TW343R
Panel Type 0.59" LCD x 3
Lamp 230W x 1
Brightness 3,300 lumens
Lens Fixed (0.46:1 throw ratio), F1.8, f6.08mm
Contrast (Full on / Full off) 12000:1
Resolution (Native / maximum) WXGA
Video Compatibility PAL, PAL-N, SECAM, NTSC, NTSC4.43, PAL-M, PAL60
Screen Size 50" - 100"
Keystone Correction Range Vertical ±15°; Horizontal ±15°
Weight Approx 3.9kg
Dimensions (W x H x D) 335 x 134.1 x 329 mm
Power Consumption 300W
Terminals HDMI (19 pin x 1)
PC in (D-sub HD 15-pin x 1)
PC in (D-sub HD 15-pin x 1)
Monitor out (D-sub HD 15-pin x 1)
Video in (Pin jack x 1)
Audio in (M3 x 1)
Audio in (Pin jack x 2, L,R)
Audio out (M3 x 1 (L-R x 1)
LAN (RJ45 x 1), 10Base-T/100Base-TX, PJLink (class 1) compatible
Serial in (D-sub 9-pin (female) x 1)
USB-Type A: Memory Viewer
USB-Type B: USB display
Mini USB x 1: for Interaction function
Replacement Lamp ET-LAL500
Optional Accessories ET-PEN100 (interactive pen)
ET-PNT100 (interactive pointer)
ET-RFL300 (Replacement filter)
ET-PKL100H (High ceiling mount bracket)
ET-PKL100S (Low ceiling mount bracket)
ET-PKL430B(Bracket assembly)
ET-WML100 wireless module
Lamp 230W x 1
Brightness 3,300 lumens
Lens Fixed (0.46:1 throw ratio), F1.8, f6.08mm
Contrast (Full on / Full off) 12000:1
Resolution (Native / maximum) WXGA
Video Compatibility PAL, PAL-N, SECAM, NTSC, NTSC4.43, PAL-M, PAL60
Screen Size 50" - 100"
Keystone Correction Range Vertical ±15°; Horizontal ±15°
Weight Approx 3.9kg
Dimensions (W x H x D) 335 x 134.1 x 329 mm
Power Consumption 300W
Terminals HDMI (19 pin x 1)
PC in (D-sub HD 15-pin x 1)
PC in (D-sub HD 15-pin x 1)
Monitor out (D-sub HD 15-pin x 1)
Video in (Pin jack x 1)
Audio in (M3 x 1)
Audio in (Pin jack x 2, L,R)
Audio out (M3 x 1 (L-R x 1)
LAN (RJ45 x 1), 10Base-T/100Base-TX, PJLink (class 1) compatible
Serial in (D-sub 9-pin (female) x 1)
USB-Type A: Memory Viewer
USB-Type B: USB display
Mini USB x 1: for Interaction function
Replacement Lamp ET-LAL500
Optional Accessories ET-PEN100 (interactive pen)
ET-PNT100 (interactive pointer)
ET-RFL300 (Replacement filter)
ET-PKL100H (High ceiling mount bracket)
ET-PKL100S (Low ceiling mount bracket)
ET-PKL430B(Bracket assembly)
ET-WML100 wireless module
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100

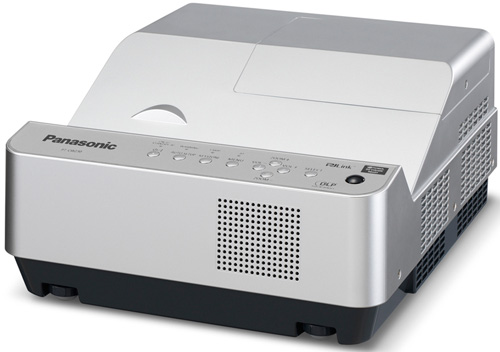

ویدئو پروژکتور پاناسونیکPT-CW331R
ویدئو پروژکتور پاناسونیکPT-CW331R
DLP™ chip Panel size 16.5 mm (0.65 in) diagonal
(16:10 aspect ratio)
Display method DLP™ chip x 1, DLP™ projection system
Pixels 1,024,000 (1,280 x 800) pixels
Lamp 280 W UHM lamp
(The lamp replacement cycle is 4,000 hours)
Color reproducibility Full color (16,777,216 colors)
Brightness 3,100 lm
Center-to-corner uniformity 80 %
Contrast ratio 8,000:1 (full on/off) (During RGB signal input, lamp power: Normal)
Resolution 1,280 x 800 pixels
(Input signals that exceed this resolution
will be converted to 1,280 x 800 pixels.)
Lens Fixed (0.35:1 throw ratio),
manual focus F = 2.6, f = -5.27 mm
Screen size (diagonal) 1.78-2.54 m (70-100 in)
(16:10 aspect ratio)
Scanning frequency
HDMI (Horizontal) 15-100 kHz; (Vertical) 24-120 Hz; (Dot clock) 25-162 MHz
RGB (analog) (Horizontal) 15-100 kHz; (Vertical) 24-120 Hz; (Dot clock) 162 MHz or lower
YPBPR (YCBCR) fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
Video / S-Video (fH) 15.75/15.63 kHz (fV) 50/60 Hz [NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM]
Terminals
HDMI IN HDMI 19-pin x 1(Deep color, compatible with HDCP),
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER IN 1 D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1]
COMPUTER IN 2 D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1]
MONITOR OUT D-sub HD 15-pin (female) x 1 (The signal selected from computer input 1/2 is output.)
VIDEO IN Pin jack x 1
S-VIDEO IN Mini DIN 4-pin x 1
COMPUTER 1 AUDIO IN M3 x 1 (L-R x 1)
COMPUTER 2 AUDIO IN M3 x 1 (L-R x 1)
VIDEO AUDIO IN Pin jack x 2 (L x 1, R x 1)
S-VIDEO AUDIO IN Pin jack x 2 (L x 1, R x 1)
AUDIO OUT M3 x 1 (L-R x 1) (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
LAN RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T,
compliant with PJLink™ (class 1))
Mini USB 1 for servicemen (for interactive function)
Built-in speaker 7cm x 3cm oval shape x 1, output power 10 W (monaural)
Keystone correction range Vertical: ±15°
Installation Ceiling/floor, front/rear (Menu setting)
Cabinet materials Molded plastic
Power supply 100-240 V AC, 50/60 Hz
Power consumption 340 W
(0.5 W when
STANDBY MODE set to
ECO,*1 6.0 W when
STANDBY MODE set to
NORMAL.)
Power cord length 3.0 m (9'10")
Dimensions (W x H x D) 357 x 250 x 367 mm (14-1/16 x 9-27/32 x 14-29/64 in)
(with legs at shortest position)
Weight Approximately
7.8 kg (17.2 lbs)
Operation Noise 37 dB
(Lamp power: Normal);
33 dB (Lamp power: Eco)
Operating temperature 5°C-40°C [41°F-104°F] (Less than 762 m [2,500 ft] above sea level);
5°C-35°C [41°F-95°F] (between 762 and 1,524 m [2,500 ft and 5,000 ft] above sea level);
5°C-30°C [41°F-86°F] (between 1,524 and 3,048 m [5,000 ft and 10,000 ft] above sea level)
Operating humidity 20 %-80 % (no condensation)
(16:10 aspect ratio)
Display method DLP™ chip x 1, DLP™ projection system
Pixels 1,024,000 (1,280 x 800) pixels
Lamp 280 W UHM lamp
(The lamp replacement cycle is 4,000 hours)
Color reproducibility Full color (16,777,216 colors)
Brightness 3,100 lm
Center-to-corner uniformity 80 %
Contrast ratio 8,000:1 (full on/off) (During RGB signal input, lamp power: Normal)
Resolution 1,280 x 800 pixels
(Input signals that exceed this resolution
will be converted to 1,280 x 800 pixels.)
Lens Fixed (0.35:1 throw ratio),
manual focus F = 2.6, f = -5.27 mm
Screen size (diagonal) 1.78-2.54 m (70-100 in)
(16:10 aspect ratio)
Scanning frequency
HDMI (Horizontal) 15-100 kHz; (Vertical) 24-120 Hz; (Dot clock) 25-162 MHz
RGB (analog) (Horizontal) 15-100 kHz; (Vertical) 24-120 Hz; (Dot clock) 162 MHz or lower
YPBPR (YCBCR) fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
Video / S-Video (fH) 15.75/15.63 kHz (fV) 50/60 Hz [NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM]
Terminals
HDMI IN HDMI 19-pin x 1(Deep color, compatible with HDCP),
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER IN 1 D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1]
COMPUTER IN 2 D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1]
MONITOR OUT D-sub HD 15-pin (female) x 1 (The signal selected from computer input 1/2 is output.)
VIDEO IN Pin jack x 1
S-VIDEO IN Mini DIN 4-pin x 1
COMPUTER 1 AUDIO IN M3 x 1 (L-R x 1)
COMPUTER 2 AUDIO IN M3 x 1 (L-R x 1)
VIDEO AUDIO IN Pin jack x 2 (L x 1, R x 1)
S-VIDEO AUDIO IN Pin jack x 2 (L x 1, R x 1)
AUDIO OUT M3 x 1 (L-R x 1) (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
LAN RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T,
compliant with PJLink™ (class 1))
Mini USB 1 for servicemen (for interactive function)
Built-in speaker 7cm x 3cm oval shape x 1, output power 10 W (monaural)
Keystone correction range Vertical: ±15°
Installation Ceiling/floor, front/rear (Menu setting)
Cabinet materials Molded plastic
Power supply 100-240 V AC, 50/60 Hz
Power consumption 340 W
(0.5 W when
STANDBY MODE set to
ECO,*1 6.0 W when
STANDBY MODE set to
NORMAL.)
Power cord length 3.0 m (9'10")
Dimensions (W x H x D) 357 x 250 x 367 mm (14-1/16 x 9-27/32 x 14-29/64 in)
(with legs at shortest position)
Weight Approximately
7.8 kg (17.2 lbs)
Operation Noise 37 dB
(Lamp power: Normal);
33 dB (Lamp power: Eco)
Operating temperature 5°C-40°C [41°F-104°F] (Less than 762 m [2,500 ft] above sea level);
5°C-35°C [41°F-95°F] (between 762 and 1,524 m [2,500 ft and 5,000 ft] above sea level);
5°C-30°C [41°F-86°F] (between 1,524 and 3,048 m [5,000 ft and 10,000 ft] above sea level)
Operating humidity 20 %-80 % (no condensation)
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100
ویدئو پروژکتور پاناسونیک PT-LW25H
ویدئو پروژکتور پاناسونیک PT-LW25H
General Power supply 100-240 V AC, 50/60 Hz
Power consumption 297 W (0.47 W in Eco standby mode*1, 8.6 W in Network standby mode.)
LCD panel Panel size 15 mm (0.59 inches) diagonal (16:10 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Pixels 1,024,000 (1,280 × 800) x 3, total of 3,072,000 pixels
Lens 1.2x manual zoom, manual focus, F 2.10-2.25, f 19.11-22.94 mm
Lamp 230 W × 1, lamp replacement cycle (lamp power: High, Normal/Eco): 3,000 hours/4,000 hours*2
Screen size (diagonal) 0.76-7.62 m (30-300 inch)
Brightness*3 2,500 lm (lamp power: High)
Center-to-corner uniformity*3 85%
Contrast*3 3,000:1 (full on/full off, lamp power: High, Iris: on)
Resolution 1,280 × 800 pixels*4
Scanning frequency RGB (analog) fH: 15-100 kHz, fV: 50-100 Hz, dot clock: 140 MHz or lower
(Signals exceeding the dot clock rate of 140 MHz are downsampled.)
YPBPR (YCBCR) fH: 15.75 kHz, fV: 60 Hz [480i(525i)]
fH: 31.50 kHz, fV: 60 Hz [480p(525p)]
fH: 45.00 kHz, fV: 60 Hz [720(750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080(1125)/60i]
fH: 15.63 kHz, fV: 50 Hz [576i(625i)]
fH: 31.25 kHz, fV: 50 Hz [576p(625p)]
fH: 37.50 kHz, fV: 50 Hz [720(750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080(1125)/50i]
VIDEO/S-VIDEO fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift 13:1
Keystone correction range Vertical: ±30° (±20° when Real-Time Keystone)
Installation Ceiling/floor, front/rear
Terminals COMPUTER IN 1/ S-VIDEO IN D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR /S-VIDEO x 1)
(The D-Sub/S-VIDEO conversion cable ET-ADSV is required for inputting S-VIDEO signals.)
COMPUTER IN 2/ MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB×1), (input/output selectable using on-screen menu)
(When Monitor Out is selected, the COMPUTER IN 1 signal is output.)
VIDEO IN RCA pin × 1 (Composite VIDEO)
AUDIO IN RCA pin x 2 (L-R x 1) for VIDEO input
COMPUTER AUDIO IN M3 × 1 (L-R x 1)
SERIAL IN D-sub 9-pin (male) × 1 for external control (RS-232C compliant)
LAN RJ-45 × 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™ (class 1))
Built-in speaker 3.2 cm round shape × 1, output power: 1 W (monaural)
Noise level 37.0 dB (lamp power: High), 34.1 dB (lamp power: Normal), 29.0 dB (lamp power: Eco)
Cabinet materials Molded plastic
Dimensions (W × H × D) 349 x 105 x 247 mm (13.7" x 4.1" x 9.7")
(with legs at shortest position, not including protruding parts)
Weight Approximately 2.99 kg (6.59 lbs)
Operating environment Operating temperature: 5°C-35°C (41°F-95°F),
operating humidity: 20%-80% (no condensation)
NOTE *1 When Standby mode is set to Eco, network functions such as standby on via LAN are not available. Also, only certain commands can be received for external control using the serial terminal.
*2 The values given for the recommended lamp replacement cycles are maximum. The usage environment affects the lamp replacement cycle.
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Input signals that exceed this resolution will be converted to 1,280 x 800 pixels.
*5 Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.
Power consumption 297 W (0.47 W in Eco standby mode*1, 8.6 W in Network standby mode.)
LCD panel Panel size 15 mm (0.59 inches) diagonal (16:10 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Pixels 1,024,000 (1,280 × 800) x 3, total of 3,072,000 pixels
Lens 1.2x manual zoom, manual focus, F 2.10-2.25, f 19.11-22.94 mm
Lamp 230 W × 1, lamp replacement cycle (lamp power: High, Normal/Eco): 3,000 hours/4,000 hours*2
Screen size (diagonal) 0.76-7.62 m (30-300 inch)
Brightness*3 2,500 lm (lamp power: High)
Center-to-corner uniformity*3 85%
Contrast*3 3,000:1 (full on/full off, lamp power: High, Iris: on)
Resolution 1,280 × 800 pixels*4
Scanning frequency RGB (analog) fH: 15-100 kHz, fV: 50-100 Hz, dot clock: 140 MHz or lower
(Signals exceeding the dot clock rate of 140 MHz are downsampled.)
YPBPR (YCBCR) fH: 15.75 kHz, fV: 60 Hz [480i(525i)]
fH: 31.50 kHz, fV: 60 Hz [480p(525p)]
fH: 45.00 kHz, fV: 60 Hz [720(750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080(1125)/60i]
fH: 15.63 kHz, fV: 50 Hz [576i(625i)]
fH: 31.25 kHz, fV: 50 Hz [576p(625p)]
fH: 37.50 kHz, fV: 50 Hz [720(750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080(1125)/50i]
VIDEO/S-VIDEO fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift 13:1
Keystone correction range Vertical: ±30° (±20° when Real-Time Keystone)
Installation Ceiling/floor, front/rear
Terminals COMPUTER IN 1/ S-VIDEO IN D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR /S-VIDEO x 1)
(The D-Sub/S-VIDEO conversion cable ET-ADSV is required for inputting S-VIDEO signals.)
COMPUTER IN 2/ MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB×1), (input/output selectable using on-screen menu)
(When Monitor Out is selected, the COMPUTER IN 1 signal is output.)
VIDEO IN RCA pin × 1 (Composite VIDEO)
AUDIO IN RCA pin x 2 (L-R x 1) for VIDEO input
COMPUTER AUDIO IN M3 × 1 (L-R x 1)
SERIAL IN D-sub 9-pin (male) × 1 for external control (RS-232C compliant)
LAN RJ-45 × 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™ (class 1))
Built-in speaker 3.2 cm round shape × 1, output power: 1 W (monaural)
Noise level 37.0 dB (lamp power: High), 34.1 dB (lamp power: Normal), 29.0 dB (lamp power: Eco)
Cabinet materials Molded plastic
Dimensions (W × H × D) 349 x 105 x 247 mm (13.7" x 4.1" x 9.7")
(with legs at shortest position, not including protruding parts)
Weight Approximately 2.99 kg (6.59 lbs)
Operating environment Operating temperature: 5°C-35°C (41°F-95°F),
operating humidity: 20%-80% (no condensation)
NOTE *1 When Standby mode is set to Eco, network functions such as standby on via LAN are not available. Also, only certain commands can be received for external control using the serial terminal.
*2 The values given for the recommended lamp replacement cycles are maximum. The usage environment affects the lamp replacement cycle.
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Input signals that exceed this resolution will be converted to 1,280 x 800 pixels.
*5 Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100
