مقالات ویدئو پروژکتور پاناسونیک
معرفی و توضیح انواع ویدئو پروژکتورهای پاناسونیک
مقالات ویدئو پروژکتور پاناسونیک
معرفی و توضیح انواع ویدئو پروژکتورهای پاناسونیکویدئو پروژکتور پاناسونیکPT-VW431D
ویدئو پروژکتور پاناسونیکPT-VW431D
• DIGITAL LINK function* enables high-quality digital transmission over a single cable.**
* Compatible with another maker's equipment.
** CAT5e (STP) cable or higher.
• A highly bright portable with 4,300 lm of brightness.
• The Daylight View Basic function ensures clear images even in brightly lit rooms.
• The Vertical Lens Shift moves the image position vertically without distorting.
• A 10-watt speaker and a microphone input enable audio playback directly from the projector.
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100
ویدئو پروژکتور پاناسونیک PT-LZ370
ویدئو پروژکتور پاناسونیک PT-LZ370
• Stunning Full-HD quality with 10,000:1 contrast ratio, ideal for lectures and presentations requiring high detailed images.
• Various picture modes including Dicom Simulation mode are available.
• The horizontal/vertical lens shift and a 2x zoom lens enables flexible installation.
• Crestron Roomview™ application compatibility.
• Ecology-conscious design, such as Eco Management function and low power consumption.
• Various picture modes including Dicom Simulation mode are available.
• The horizontal/vertical lens shift and a 2x zoom lens enables flexible installation.
• Crestron Roomview™ application compatibility.
• Ecology-conscious design, such as Eco Management function and low power consumption.
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100
ویدئو پروژکتور پاناسونیک PT-EW650
Power supply 100-240 V AC, 50/60 Hz
Power consumption 461 W (0.3 W with Standby Mode set to Eco*1,
8 W with Standby Mode set to Normal)
12 W with Standby Mode set to Normal)
LCD Panel Panel size 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Display method Transparent LCD panel (x3, R/G/B)
Drive method Active matrix
Pixels 1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels
Lens PT-EW650 Powered zoom (throw ratio 1.22-2.26:1), powered focus, F 1.6-2.2, f 17.1-31.7 mm
Lamp 320 W UHM lamp x 1
Lamp replacement cycle 4,000 hours*2 (lamp power: Normal), 5,000 hours*2 (lamp power: Eco)
Screen size (diagonal) 1.03-10.57 m (40-400 in), 16:10 aspect ratio
Brightness*3 5,800 lm (lamp power: Auto/Normal, Dynamic Mode, standard lens)
Center-to-corner uniformity*3 90%
Contrast*3 10,000:1 (full on/full off, lamp power: Auto, Iris: ON)
Resolution 1,280 x 800 pixels*4
Scanning HDMI Dot clock: 25-162 MHz
Frequency DIGITAL LINK (VGA: 640 x 480 pixels to WUXGA: 1,920 x 1,200 pixels, VESA CVT-RB compliant with HDCP)
(DIGITAL LINK not included on PT-EW550/EW550L.)
RGB fH: 15-91 kHz, fV: 24-120 Hz, dot clock: up to 162 MHz
YPBPR (YCBCR) fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
Video/YC fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis Vertical ±60% (powered)
Shift Horizontal ±30% (powered)
Keystone correction range*5 Vertical ±30°, horizontal ±25°
Installation Ceiling/floor, front/rear
Built-in speaker 3.7 cm round shape × 1, output power: 10.0 W (monaural)
Terminals HDMI IN HDMI 19-pin x 2 (Deep Color, compatible with HDCP),
audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
RGB 1 IN BNC x 5 (RGB or YPBPR/YCBCR x 1), shared with VIDEO IN (S-video/composite video)
RGB 2 IN D-Sub HD 15-pin (female) x 1
VIDEO IN Pin jack x 1 (composite video)
MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB x 1) (compatible with RGB or YPBPR/YCBCR)
AUDIO IN Pin jack x 2 (L/R x 1), M3 x 2 (L-R x 2)
AUDIO OUT M3 x 1 (L-R x 1) for output (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
REMOTE 1 IN M3 x 1 for wired remote control
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX, compatible with PJLink™
DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connection,
100Base-TX, compatible with PJLink™, HDCP, Deep Color
USB-A 2 (Network/Wireless x 1, 5 V/0.9 A x 1)
Operation noise*3 35 dB (lamp power: Normal), 29 dB (lamp power: ECO)
Filter x1, replacement cycle: up to 15,000 hours*6
Mechanical shutter Yes
Cabinet materials Molded plastic (PC + ABS)
Dimensions (W x H x D) 498 x 145*7 x 398.3 mm (19-19/32 x 5-23/32*7 x 15-11/16 in) (with supplied lens)
Weight*8 Approx. 9.0 kg (19.8 lbs) (with supplied lens)
Operating environment Operating temperature: 0-45 °C (32-113 °F)*9,
operating humidity: 20-80 % (no condensation)
Note: The PT-EZ590L/EW650L/EW550L delivers the same performance as the PT-EZ590/EW650/EW550, but comes without a lens.
*1 When Standby Mode is set to Eco, network functions such as power on over LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2 This is the maximum value when the lamp is turned on for 2 hours and off for 0.25 hours. If the lamp is turned on more times or kept on for a long time, lamp replacement cycle will shorten. Usage environment affects the duration of the lamp.
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Input signals that exceed supported resolution will be converted.
*5 With the supplied lens. Value differs when the correction for both directions is operated.
*6 Usage environment affects the duration of the filter.
*7 With legs at shortest position.
*8 Average value. May differ depending on models.
*9 Operating temperature range is 0 °C to 40 °C (32 °F to 104 °F) when used at altitudes from 1,400 m to 2,700 m (4,593 ft to 8,858 ft) above sea level. Also, if ambient temperature exceeds 40 °C (104 °F) (35 °C [95 °F] at high altitude), lamp power may automatically switch to Eco to in order to protect the projector.
Power consumption 461 W (0.3 W with Standby Mode set to Eco*1,
8 W with Standby Mode set to Normal)
12 W with Standby Mode set to Normal)
LCD Panel Panel size 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Display method Transparent LCD panel (x3, R/G/B)
Drive method Active matrix
Pixels 1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels
Lens PT-EW650 Powered zoom (throw ratio 1.22-2.26:1), powered focus, F 1.6-2.2, f 17.1-31.7 mm
Lamp 320 W UHM lamp x 1
Lamp replacement cycle 4,000 hours*2 (lamp power: Normal), 5,000 hours*2 (lamp power: Eco)
Screen size (diagonal) 1.03-10.57 m (40-400 in), 16:10 aspect ratio
Brightness*3 5,800 lm (lamp power: Auto/Normal, Dynamic Mode, standard lens)
Center-to-corner uniformity*3 90%
Contrast*3 10,000:1 (full on/full off, lamp power: Auto, Iris: ON)
Resolution 1,280 x 800 pixels*4
Scanning HDMI Dot clock: 25-162 MHz
Frequency DIGITAL LINK (VGA: 640 x 480 pixels to WUXGA: 1,920 x 1,200 pixels, VESA CVT-RB compliant with HDCP)
(DIGITAL LINK not included on PT-EW550/EW550L.)
RGB fH: 15-91 kHz, fV: 24-120 Hz, dot clock: up to 162 MHz
YPBPR (YCBCR) fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
Video/YC fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis Vertical ±60% (powered)
Shift Horizontal ±30% (powered)
Keystone correction range*5 Vertical ±30°, horizontal ±25°
Installation Ceiling/floor, front/rear
Built-in speaker 3.7 cm round shape × 1, output power: 10.0 W (monaural)
Terminals HDMI IN HDMI 19-pin x 2 (Deep Color, compatible with HDCP),
audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
RGB 1 IN BNC x 5 (RGB or YPBPR/YCBCR x 1), shared with VIDEO IN (S-video/composite video)
RGB 2 IN D-Sub HD 15-pin (female) x 1
VIDEO IN Pin jack x 1 (composite video)
MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB x 1) (compatible with RGB or YPBPR/YCBCR)
AUDIO IN Pin jack x 2 (L/R x 1), M3 x 2 (L-R x 2)
AUDIO OUT M3 x 1 (L-R x 1) for output (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
REMOTE 1 IN M3 x 1 for wired remote control
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX, compatible with PJLink™
DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connection,
100Base-TX, compatible with PJLink™, HDCP, Deep Color
USB-A 2 (Network/Wireless x 1, 5 V/0.9 A x 1)
Operation noise*3 35 dB (lamp power: Normal), 29 dB (lamp power: ECO)
Filter x1, replacement cycle: up to 15,000 hours*6
Mechanical shutter Yes
Cabinet materials Molded plastic (PC + ABS)
Dimensions (W x H x D) 498 x 145*7 x 398.3 mm (19-19/32 x 5-23/32*7 x 15-11/16 in) (with supplied lens)
Weight*8 Approx. 9.0 kg (19.8 lbs) (with supplied lens)
Operating environment Operating temperature: 0-45 °C (32-113 °F)*9,
operating humidity: 20-80 % (no condensation)
Note: The PT-EZ590L/EW650L/EW550L delivers the same performance as the PT-EZ590/EW650/EW550, but comes without a lens.
*1 When Standby Mode is set to Eco, network functions such as power on over LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2 This is the maximum value when the lamp is turned on for 2 hours and off for 0.25 hours. If the lamp is turned on more times or kept on for a long time, lamp replacement cycle will shorten. Usage environment affects the duration of the lamp.
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Input signals that exceed supported resolution will be converted.
*5 With the supplied lens. Value differs when the correction for both directions is operated.
*6 Usage environment affects the duration of the filter.
*7 With legs at shortest position.
*8 Average value. May differ depending on models.
*9 Operating temperature range is 0 °C to 40 °C (32 °F to 104 °F) when used at altitudes from 1,400 m to 2,700 m (4,593 ft to 8,858 ft) above sea level. Also, if ambient temperature exceeds 40 °C (104 °F) (35 °C [95 °F] at high altitude), lamp power may automatically switch to Eco to in order to protect the projector.
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100
ویدئو پروژکتور پاناسونیک PT-CW230
Power supply 100–240 V AC, 50/60 Hz
Power consumption 350 W (0.45 W when STANDBY MODE set to ECO,*1
11.0 W when STANDBY MODE set to NETWORK.)
DLP™ chip Panel size 16.5 mm (0.65 inches) diagonal
(16:10 aspect ratio)
Display method DLP™ chip x 1 DLP™ system
Pixels 1,024,000 (1,280 x 800) pixels
Lens Fixed (0.19:1 throw ratio),
manual focus F = 2.5, f = 4.83 mm
Lamp 275 W UHM lamp (The lamp replacement cycle is 3,000 hours)
Screen size (diagonal) 1.52-2.79 m (60-110 inches)
(16:10 aspect ratio)
Color reproducibility Full color (16,777,216 colors)
Brightness 2,500 lm (lamp power: Normal)
Center-to-corner uniformity ratio *2 80%
Contrast 2,000:1 (full on/off, lamp power: Normal)
Resolution 1,280 x 800 pixels
(Input signals that exceed this resolution
will be converted to 1,280 x 800 pixels.)
Scanning frequency HDMI (Horizontal) 15-93 kHz; (Vertical) 50-120 Hz; (Dot clock) 150 MHz or lower
RGB (analog) (Horizontal) 15-93 kHz; (Vertical) 50-120 Hz; (Dot clock) 150 MHz or lower
(Signals exceeding the dot clock rate of 150 MHz are downsampled.)
YPBPR (YCBCR) fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
S-Video/Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Installation Ceiling/floor, front/rear (Menu setting)
Built-in speaker 3.7 cm round shape x 1, output power 10 W (monaural)
Keystone correction range Vertical: ±5°
Terminals HDMI IN HDMI 19-pin x 1(compatible with HDCP)
Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER IN 1 D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR)x 1]
COMPUTER IN 2 / MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB x 1) (input/output selectable using on-screen Menu)
(When Monitor Out is selected, the COMPUTER IN 1 signal is output.)
VIDEO IN RCA pin x 1
S-VIDEO IN Mini DIN 4-pin x 1
COMPUTER 1 AUDIO IN M3 x 1 (L-R x 1)
COMPUTER 2 AUDIO IN M3 x 1 (L-R x 1)
AUDIO IN RCA pin x 2 (L/R x 1) for VIDEO/S-VIDEO input
AUDIO OUT M3 x 1 (L-R x 1) for output (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
LAN RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T,
compliant with PJLink™ (class 1))
3D SYNC OUT Mini DIN 3-pin x 1 (for 3D transmitter connection)
Power cord length 3.0 m (9'10")
Cabinet material Molded plastic (PC)
Dimensions (W x H x D) 321 x 178 x 386 mm (12-5/8" x 7" x 15-3/16")
(with legs at shortest position)
Weight Approximately 6.2 kg (13.7 lbs)
Noise level 36 dB (Lamp power: Normal); 28 dB (Lamp power: Eco)
Operating Temperature 0°C-40°C [32°F-104°F] (Less than 1,000 m [3,281 ft] above sea level)
0°C-30°C [32°F-86°F] (between 1,000 and 2,700 m [3,281 ft and 8,858 ft] above sea level)
Operating humidity 20%-80% (no condensation)
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100

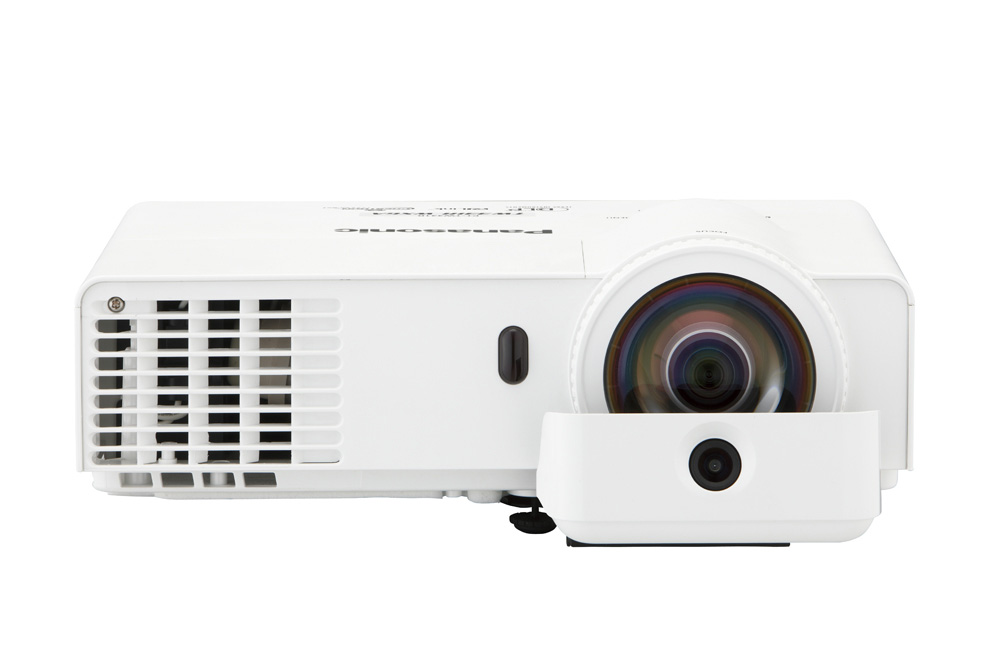

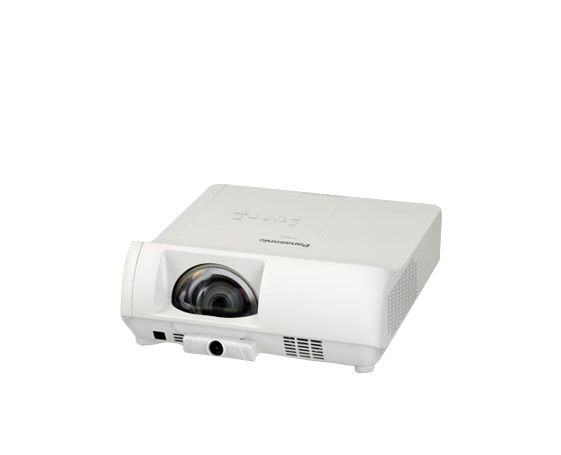

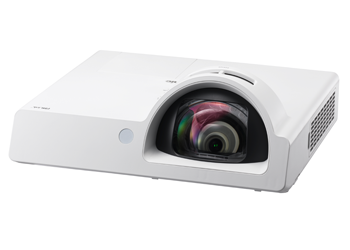

ویدئو پروژکتور پاناسونیک PT-TX312
ویدئو پروژکتور پاناسونیک PT-TX312
Panel Type 0.63" LCD x 3
Lamp 230W x 1
Brightness 3,200 lumens
Lens Fixed (0.46:1 throw ratio), F1.8, f6.08mm
Contrast (Full on / Full off) 12000:1
Resolution (Native / maximum) XGA
Video Compatibility PAL, PAL-N, SECAM, NTSC, NTSC4.43, PAL-M, PAL60
Screen Size 50" - 100"
Keystone Correction Range Vertical ±15°; Horizontal ±15°
Weight Approx 3.9kg
Dimensions (W x H x D) 335 x 134.1 x 329 mm
Power Consumption 300W
Terminals HDMI (19 pin x 1)
PC in (D-sub HD 15-pin x 1)
PC in (D-sub HD 15-pin x 1)
Monitor out (D-sub HD 15-pin x 1)
Video in (Pin jack x 1)
Audio in (M3 x 1)
Audio in (Pin jack x 2, L,R)
Audio out (M3 x 1 (L-R x 1)
LAN (RJ45 x 1), 10Base-T/100Base-TX, PJLink (class 1) compatible
Serial in (D-sub 9-pin (female) x 1)
USB-Type A: Memory Viewer
USB-Type B: USB display
Replacement Lamp ET-LAL500
Optional Accessories ET-RFL300 (Replacement filter)
ET-PKL100H (High ceiling mount bracket)
ET-PKL100S (Low ceiling mount bracket)
ET-PKL430B(Bracket assembly)
ET-WML100 wireless module
Lamp 230W x 1
Brightness 3,200 lumens
Lens Fixed (0.46:1 throw ratio), F1.8, f6.08mm
Contrast (Full on / Full off) 12000:1
Resolution (Native / maximum) XGA
Video Compatibility PAL, PAL-N, SECAM, NTSC, NTSC4.43, PAL-M, PAL60
Screen Size 50" - 100"
Keystone Correction Range Vertical ±15°; Horizontal ±15°
Weight Approx 3.9kg
Dimensions (W x H x D) 335 x 134.1 x 329 mm
Power Consumption 300W
Terminals HDMI (19 pin x 1)
PC in (D-sub HD 15-pin x 1)
PC in (D-sub HD 15-pin x 1)
Monitor out (D-sub HD 15-pin x 1)
Video in (Pin jack x 1)
Audio in (M3 x 1)
Audio in (Pin jack x 2, L,R)
Audio out (M3 x 1 (L-R x 1)
LAN (RJ45 x 1), 10Base-T/100Base-TX, PJLink (class 1) compatible
Serial in (D-sub 9-pin (female) x 1)
USB-Type A: Memory Viewer
USB-Type B: USB display
Replacement Lamp ET-LAL500
Optional Accessories ET-RFL300 (Replacement filter)
ET-PKL100H (High ceiling mount bracket)
ET-PKL100S (Low ceiling mount bracket)
ET-PKL430B(Bracket assembly)
ET-WML100 wireless module
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100
آدرس سایت:www.iranpanasonic.ir
تلفن:77615100
