مقالات ویدئو پروژکتور پاناسونیک
معرفی و توضیح انواع ویدئو پروژکتورهای پاناسونیک
مقالات ویدئو پروژکتور پاناسونیک
معرفی و توضیح انواع ویدئو پروژکتورهای پاناسونیکویدئو پروژکتور پاناسونیک PT-EX630
ویدئو پروژکتور پاناسونیک PT-EX630
Power supply : 100 – 240 V AC, 50/60 Hz
Power consumption : 490 W (0.4 W with STANDBY MODE set to ECO,*1
11 W with STANDBY MODE set to NETWORK)
LCD panel Panel size: 19.0 mm
(0.75 inches)
diagonal
(16:10 aspect ratio)
Display method : Transparent LCD panel (x 3, R/G/B)
Drive method: Active matrix
Pixels : 1,024,000
(1,280 x 800) x 3,
total of 3,072,000 pixels
Lens : Powered zoom (throw ratio 1.7–2.8:1), powered focus F 1.7–2.3, f 26.9–45.4 mm
Lamp : 330 W UHM lamp x 1, lamp replacement cycle: 4,000 hours*2
Power supply : 100 – 240 V AC, 50/60 Hz
Power consumption : 490 W (0.4 W with STANDBY MODE set to ECO,*1
11 W with STANDBY MODE set to NETWORK)
LCD panel Panel size: 19.0 mm
(0.75 inches)
diagonal
(16:10 aspect ratio)
Display method : Transparent LCD panel (x 3, R/G/B)
Drive method: Active matrix
Pixels : 1,024,000
(1,280 x 800) x 3,
total of 3,072,000 pixels
Lens : Powered zoom (throw ratio 1.7–2.8:1), powered focus F 1.7–2.3, f 26.9–45.4 mm
Lamp : 330 W UHM lamp x 1, lamp replacement cycle: 4,000 hours*2
Screen size (diagonal) : 1.02–10.16 m (40–400 inches)
Color reproducibility: Full color ( 16,777,216 colors)
ایران پاناسونیک
آدرس سایت:WWW.IRANPANASONIC.IR
تماس:77615100
ویدئوپروژکتور پاناسونیک PT-VX41
ویدئوپروژکتور پاناسونیک PT-VX41
Power supply : 100–240 V AC, 50/60 Hz
Power consumption : 322 W
(0.48 W when STANDBY MODE set to ECO,* 1 10.0 W when STANDBY MODEset to NETWORK.)
Panel size : 16.0 mm (0.63 inches) diagonal (4:3 aspect ratio)
Display method : Transparent LCD panel (× 3, R/G/B)
Pixels : 786,432 (1,024 × 768) × 3, total of 2,359,296 pixels
Pixel configuration ; Stripe
Manual zoom (1.2×), manual focus F 1.60–1.76, f 22.33 – 26.80 mm
Lens :1.7–2.1:1
lamp :245 W UHM lamp
Screen size: 1.02–7.62 m (40 – 300 inches) diagonally, 4:3 aspect ratio
Colors : Full color (16,777,216 colors)
Brightness* 2 :4,000 lumens (LAMP POWER: NORMAL/AUTO)
Center-to-corner uniformity* 2: 85%
Contrast* 2 : 2,000:1 (full on/off, LAMP POWER: AUTO)
Resolution: 1,024 × 768 pixels (Input signals that exceed this resolution will be
Scanning frequency HDMI : fH: 25 kHz – 80 kHz, fV: 50 Hz– 85 Hz,
RGB : fH: 15 kHz– 100 kHz, fV: 50 Hz– 100 Hz, dot clock: 140 MHz or lower(Signals above 140 MHz are downsampled.)
Power supply : 100–240 V AC, 50/60 Hz
Power consumption : 322 W
(0.48 W when STANDBY MODE set to ECO,* 1 10.0 W when STANDBY MODEset to NETWORK.)
Panel size : 16.0 mm (0.63 inches) diagonal (4:3 aspect ratio)
Display method : Transparent LCD panel (× 3, R/G/B)
Pixels : 786,432 (1,024 × 768) × 3, total of 2,359,296 pixels
Pixel configuration ; Stripe
Manual zoom (1.2×), manual focus F 1.60–1.76, f 22.33 – 26.80 mm
Lens :1.7–2.1:1
lamp :245 W UHM lamp
Screen size: 1.02–7.62 m (40 – 300 inches) diagonally, 4:3 aspect ratio
Colors : Full color (16,777,216 colors)
Brightness* 2 :4,000 lumens (LAMP POWER: NORMAL/AUTO)
Center-to-corner uniformity* 2: 85%
Contrast* 2 : 2,000:1 (full on/off, LAMP POWER: AUTO)
Resolution: 1,024 × 768 pixels (Input signals that exceed this resolution will be
Scanning frequency HDMI : fH: 25 kHz – 80 kHz, fV: 50 Hz– 85 Hz,
RGB : fH: 15 kHz– 100 kHz, fV: 50 Hz– 100 Hz, dot clock: 140 MHz or lower(Signals above 140 MHz are downsampled.)
ایران پاناسونیک
آدرس سایت:WWW.IRANPANASONIC.IR
تماس:77615100

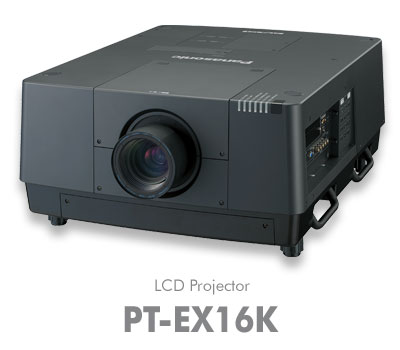

دستگاه ویدئوپروژکتورمدل PT-EX16K
دستگاه ویدئوپروژکتورمدل PT-EX16K
Power supply 200-240 V AC, 50/60 Hz
Power consumption 1,850 W (18 W with standby mode)
LCD panel Panel size 46 mm (1.8 inches) diagonal (4:3 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Pixels 786,432 (1,024 x 768) x 3, total of 2,359,296 pixels
Pixel configuration Stripe
Pure color control device 1
Lens Optional
Lamp 380 W x 4, lamp replacement cycle (lamp power: Normal/Eco1, Eco2): 2,000 hours/3,000 hours*1
ایران پاناسونیک
Power supply 200-240 V AC, 50/60 Hz
Power consumption 1,850 W (18 W with standby mode)
LCD panel Panel size 46 mm (1.8 inches) diagonal (4:3 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Pixels 786,432 (1,024 x 768) x 3, total of 2,359,296 pixels
Pixel configuration Stripe
Pure color control device 1
Lens Optional
Lamp 380 W x 4, lamp replacement cycle (lamp power: Normal/Eco1, Eco2): 2,000 hours/3,000 hours*1
ایران پاناسونیک
آدرس سایت:WWW.IRANPANASONIC.IR
تماس:77615100
دستگاه ویدئوپروژکتورمدلPT-EX12K
دستگاه ویدئوپروژکتورمدلPT-EX12K
•1.8" 4:3 LCD panel
•Brightness: 13000 lumens; Contrast ratio: 4000:1
•Resolution: 1024 x 768 (XGA)
•Lens shift function (vertical: ±39%/50% powered, horizontal: ±10% powered)
•Dual lamp optical system
•Various input: Input 1(DVI-D/HDMI/RGB), Input 2 (S-Video/RGB 5BNC), Serial, Remote, LAN, USB
•Input 3 & 4 for optional HD/SD-SDI boardPower supply: 100-240 V AC, 50/60 Hz
Power consumption: 365 W (0.3 W when standby mode set to Eco, 12.9 W when standby mode set to Network.)
Lens: 1.6x manual zoom (throw ratio: 1.18-1.90:1), manual focus, F 1.60-2.12, f 15.28-24.62mm
Lamp: 280 W x 1, lamp replacement cycle (lamp power: Normal/Eco): 2,500 hours/4,000 hours
Brightness: 5,000 lm (lamp power: Normal)
Contrast: 4,000:1 (full on/full off, lamp power: Normal, Iris: On)
Resolution: 1,024 x 768 pixels
Keystone correction range: Vertical: ±30° (±20° when Real-Time Keystone)
Dimensions: (W x H x D) 37.9 x 10.7 x 30.5 cm (with legs at shortest position, not including protruding parts)
Weight: Approximately 4.8 kg
ایران پاناسونیک
•1.8" 4:3 LCD panel
•Brightness: 13000 lumens; Contrast ratio: 4000:1
•Resolution: 1024 x 768 (XGA)
•Lens shift function (vertical: ±39%/50% powered, horizontal: ±10% powered)
•Dual lamp optical system
•Various input: Input 1(DVI-D/HDMI/RGB), Input 2 (S-Video/RGB 5BNC), Serial, Remote, LAN, USB
•Input 3 & 4 for optional HD/SD-SDI boardPower supply: 100-240 V AC, 50/60 Hz
Power consumption: 365 W (0.3 W when standby mode set to Eco, 12.9 W when standby mode set to Network.)
Lens: 1.6x manual zoom (throw ratio: 1.18-1.90:1), manual focus, F 1.60-2.12, f 15.28-24.62mm
Lamp: 280 W x 1, lamp replacement cycle (lamp power: Normal/Eco): 2,500 hours/4,000 hours
Brightness: 5,000 lm (lamp power: Normal)
Contrast: 4,000:1 (full on/full off, lamp power: Normal, Iris: On)
Resolution: 1,024 x 768 pixels
Keystone correction range: Vertical: ±30° (±20° when Real-Time Keystone)
Dimensions: (W x H x D) 37.9 x 10.7 x 30.5 cm (with legs at shortest position, not including protruding parts)
Weight: Approximately 4.8 kg
ایران پاناسونیک
آدرس سایت:WWW.IRANPANASONIC.IR
تماس:77615100
دستگاه ویدئوپروژکتورمدل PT-VX505N
دستگاه ویدئوپروژکتورمدل PT-VX505N
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 365 W (0.3 W when standby mode set to Eco, 12.9 W when standby mode set to Network.)
Lens: 1.6x manual zoom (throw ratio: 1.18-1.90:1), manual focus, F 1.60-2.12, f 15.28-24.62mm
Lamp: 280 W x 1, lamp replacement cycle (lamp power: Normal/Eco): 2,500 hours/4,000 hours
Brightness: 5,000 lm (lamp power: Normal)
Contrast: 4,000:1 (full on/full off, lamp power: Normal, Iris: On)
Resolution: 1,024 x 768 pixels
Keystone correction range: Vertical: ±30° (±20° when Real-Time Keystone)
Dimensions: (W x H x D) 37.9 x 10.7 x 30.5 cm (with legs at shortest position, not including protruding parts)
Weight: Approximately 4.8 kg
USB
ایران پاناسونیک
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 365 W (0.3 W when standby mode set to Eco, 12.9 W when standby mode set to Network.)
Lens: 1.6x manual zoom (throw ratio: 1.18-1.90:1), manual focus, F 1.60-2.12, f 15.28-24.62mm
Lamp: 280 W x 1, lamp replacement cycle (lamp power: Normal/Eco): 2,500 hours/4,000 hours
Brightness: 5,000 lm (lamp power: Normal)
Contrast: 4,000:1 (full on/full off, lamp power: Normal, Iris: On)
Resolution: 1,024 x 768 pixels
Keystone correction range: Vertical: ±30° (±20° when Real-Time Keystone)
Dimensions: (W x H x D) 37.9 x 10.7 x 30.5 cm (with legs at shortest position, not including protruding parts)
Weight: Approximately 4.8 kg
USB
ایران پاناسونیک
آدرس سایت:WWW.IRANPANASONIC.IR
تماس:7761510
