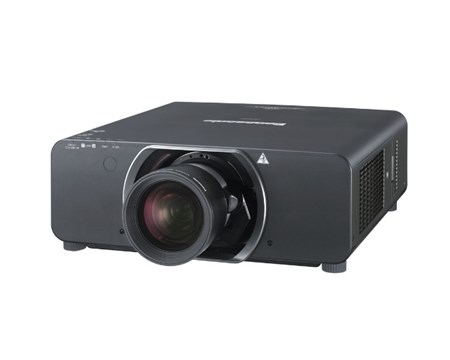

ویدئو پروژکتور پاناسونیک PT-DZ16K

ویدئو پروژکتور پاناسونیک PT-DZ16K

• Panasonic’s unique quad-lamp system, with its high-power lamps, has helped to make the body compact while providing an astounding 16,000 lm of brightness.
• Up to 3,000-hour* lamp replacement cycle and 12,000-hour** "Eco Filter" replacement cycle reduce the total cost of ownership (TCO).
• The Geometric Adjustment function for specially shaped screens.
* The usage environment affects the lamp replacement cycle.
** The usage environment affects the duration of the filter.

 ایران پاناسونیک

آدرس سایت:www.iranpanasonic.ir

تلفن: [phone]

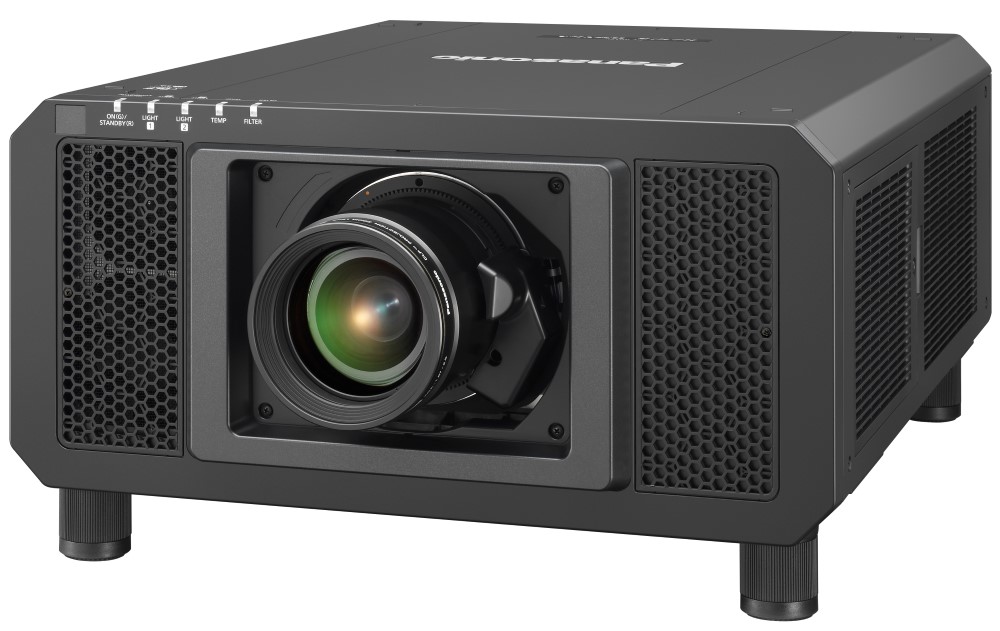

ویدئو پروژکتور پاناسونیک PT-RZ12K

ویدئو پروژکتور پاناسونیک PT-RZ12K

Panel Type                                   0.96" DLP x 3
Lamp                                           N.A. (Laser diodes light source)
Brightness                                    12,000 lumens
Contrast (Full on / Full off)         20000:1
Resolution (Native / maximum)  WUXGA
Video Compatibility                    -
Screen Size                                  50" - 600"
Lens Shift                                    Vertical +-55%(+-44% with the ET-D75LE6, +73%-+78% with the ET-D75LE90)br/>Horizontal +-20%(+-15% with the ET-D75LE6, -+6% with the ET-D75LE90)
Keystone Correction Range        Vertical ±40°, horizontal ±15%
Weight                                         44kg
Dimensions (W x H x D)             578 x 323.5 x 740 mm
Power Consumption                    1200W
Terminals                                     SDI IN1 (BNC x 1)
SDI IN2 (BNC x 1)
HDMI IN (HDMI 19-pin x 1)
DVI-D IN (DVI-D 24-pin x 1)
RGB 1 IN (RGB x 1)
RGB 2 IN (D-sub HD 15-pin female x 1)
3D Sync 1 IN/OUT (BNC x 1)
SD Sync 2 OUT (BNC x 1)
SERIAL IN (D-sub 9-pin female) x 1
SERIAL OUT (D-sub 9-pin male x 1)
REMOTE 1 IN (M3 x 1)
REMOTE 1 OUT (M3 x 1)
REMOTE 2 IN (D-sub 9-pin female x 1)
DIGITAL LINK/LAN (RJ-45 x 1)
Replacement Lamp                      N.A.
Optional Accessories                   ET-PKD520H (High ceiling mount bracket)
ET-PKD520S (Low ceiling mount bracket)
ET-PKD520B (Attachment for ceiling mount bracket)
ET-EMF330 (Filter unit)
ET-SFR330 (Smoke cut filter)
ET-PFD510 (frame)
ET-UK20 (Geometry Manager Pro Upgrade Unit)
ET-CUK10 (Auto Screen Adjustment Upgrade Unit)
ET-YFB100 (Interface unit)
ET-YFB200 (Digtial Link switcher)
Optional Lens                              Optional Lens         -
                  Zoom lens                  ET-D75LE6 (0.9-1.1:1)
ET-D75LE10(1.3-1.7:1)
ET-D75LE20( 1.7-2.4:1)
ET-D75LE30 (2.4-4.7:1)
ET-D75LE40 (4.6-7.4:1)
ET-D75LE8 (7.3-13.8:1))
                  Fixed focus lens         ET-D75LE50 (0.7:1)
ET-D75LE90 ( 0.36:1)

 ایران پاناسونیک

آدرس سایت:www.iranpanasonic.ir

تلفن: [phone]

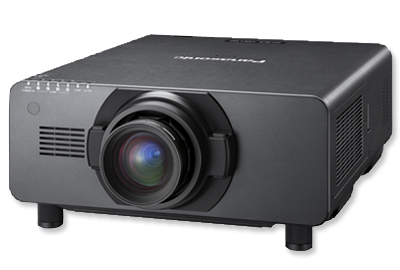

ویدئو پروژکتور پاناسونیک PT-DX820

ویدئو پروژکتور پاناسونیک PT-DX820

• 50-600" diagonal image size
• 0.7" 4:3 DLP panel
• Brightness: 8200 lumens; Contract ratio: 2400:1
• Resolution: 1024 x 768 (XGA)
• Lens shift function (vertical: +50% -13%, horizontal: +30% -10%, powered)
• Various input: DVI-D, HDMI, RGB1&2, serial, remote, LAN/Digital Link, USB
• Connectible to LAN network for control with email alert
• New liquid cooling system, for long operation hours
• 30dB operation noise

ایران پاناسونیک

آدرس سایت:www.iranpanasonic.ir

تلفن: [phone]

ویدئو پروژکتور پاناسونیک PT-DS12K

ویدئو پروژکتور پاناسونیک PT-DS12K


Panel Type                                   0.95" DLP chip x 3
Lamp                                           380W UHMTM x2
Brightness                                    12,000 lumens
Lens                                             Optional
Contrast (Full on / Full off)         10,000:1
Resolution (Native / maximum)  SXGA+ (1400 x 1050)
H-Sync/V-Sync Range                15-100 kHz / 24-120 Hz
Video Compatibility                    --
Screen Size                                  70" - 1000" (70" -600" with ET-D75LE8)
Lens Shift                                    Vertical ±50% (When using ET-D75LE6: ±40%) , horizontal ±00% (When using ET-D75LE6: ±20%)
Keystone Correction Range        --
Weight                                         Approx 24kg
Dimensions (W x H x D)             530 x 200 x 548.5 mm
Power Consumption                    950W
Terminals                                     SDI 1&2 (BNC x 1)
3D SYNC IN/OUT (BNCx 1)；3D SYNC OUT (BNC x 1)
DVI-D (24-pin x 1, HDCP-compliant)
HDMI (19 pin x 1)
RGB1 (BNC x 5)
RGB2 (D-sub HD 15-pin x 1)
Video (BNC x 1 (in)
Serial (D-sub 9-pin x 1 (in, D-sub 9-pin x 1 (out))
Remote
LAN
Replacement Lamp                      ET-LAD310AW (2 units)
ET-LAD310A
ET-LAD320P (Portrait mode)
ET-LAD320PW (Portrait mode, 2 units)
Optional Accessories                   ET-D75MC1 (Lens motor cover)
ET-ACF310(ACF unit)
ET-SFD310 (Smoke cut filter)
ET-PAD310 (Attachment plate)
ET-PFD310 (Frame)
ET-PKD310S (Low ceiling mount bracket)
ET-PKD310H (High ceiling mount bracket)
Optional Lens                              Zoom lens   ET-D75LE8 (Zoom lens, 7.9-15.0:1)
ET-D75LE40 (Zoom lens, 5.0-8.0:1)
ET-D75LE30 (Zoom lens, 2.6-5.1:1)
ET-D75LE20(Zoom lens, 1.8-2.6:1)
ET-D75LE10(Zoom lens, 1.4-1.8:1)
ET-D75LE6 (Zoom lens, 1.0-1.2:1)
                  Fixed focus lens         ET-D75LE90 (0.39:1)
ET-D75LE50 (0.8:1)

ایران پاناسونیک

آدرس سایت:www.iranpanasonic.ir

تلفن: [phone]

ویدئو پروژکتور پاناسونیک PT-DW11K

ویدئو پروژکتور پاناسونیک PT-DW11K

Panel Type                                   0.85" DLP chip x 3
Lamp                                           380W UHMTM x2
Brightness                                    11,000 lumens
Lens                                             Optional
Contrast (Full on / Full off)         10,000:1
Resolution (Native / maximum)  WXGA (1366 x 768)
H-Sync/V-Sync Range                15-100 kHz / 24-120 Hz
Video Compatibility                    --
Screen Size                                  70" - 1000" (70" -600" with ET-D75LE8)
Lens Shift                                    Vertical ±70% (When using ET-D75LE6: ±60%) , horizontal ±30% (When using ET-D75LE6: ±20%)
Keystone Correction Range        --
Weight                                         Approx 24kg
Dimensions (W x H x D)             530 x 200 x 548.5 mm
Power Consumption                    950W
Terminals                                     3D SYNC IN/OUT (BNCx 1)；3D SYNC OUT (BNC x 1)
DVI-D (24-pin x 1, HDCP-compliant)
HDMI (19 pin x 1)
RGB1 (BNC x 5)
RGB2 (D-sub HD 15-pin x 1)
Video (BNC x 1 (in)
Serial (D-sub 9-pin x 1 (in, D-sub 9-pin x 1 (out))
Remote
LAN
Replacement Lamp                      ET-LAD310AW (2 units)
ET-LAD310A
ET-LAD320P (Portrait mode)
ET-LAD320PW (Portrait mode, 2 units)
Optional Accessories                   ET-D75MC1 (Lens motor cover)
ET-ACF310(ACF unit)
ET-SFD310 (Smoke cut filter)
ET-PAD310 (Attachment plate)
ET-PFD310 (Frame)
ET-PKD310S (Low ceiling mount bracket)
ET-PKD310H (High ceiling mount bracket)
Optional Lens                              Zoom lens   ET-D75LE8 (Zoom lens, 8.2-15.4:1)
ET-D75LE40 (Zoom lens, 5.1-8.2:1)
ET-D75LE30 (Zoom lens, 2.7-5.2:1)
ET-D75LE20(Zoom lens, 1.8-2.7:1)
ET-D75LE10(Zoom lens, 1.4-1.9:1)
ET-D75LE6 (Zoom lens, 1.0-1.2:1)
                  Fixed focus lens         ET-D75LE90 (0.40:1)
ET-D75LE50 (0.8:1)
