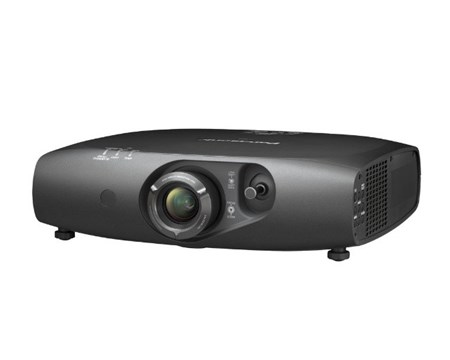

ویدئو پروژکتور پاناسونیک PT-RW430

ویدئو پروژکتور پاناسونیک PT-RW430

Panel Type                 0.65" DLP x 1
Lamp                          N.A. (LED/laser-combined light source)
Brightness                  3,500 lumens
Lens                           F2.0-3.4, f21.5-43mm
Contrast (Full on / Full off)    20000:1
Resolution (Native / maximum)          WXGA (1280x800)
Video Compatibility  PAL, PAL-M, PAL-N, PAL60, SECAM, NTSC, NTSC4.43
Screen Size                 40" - 300"
Lens Shift                  Vertical +69%, -46%, horizontal +28%, -37%
Keystone Correction Range    Vertical ±40°
Weight                       11kg
Dimensions (W x H x D)        455 x 137 x 415 mm
Power Consumption  460W
Terminals                    HDMI (19-pin x 2)
DVI-D (29-pin x 1)
PC (D-sub HD 15-pin x 1)
Composite video (RCA x 1)
Audio in (M3 (L-R) x 1)
Audio out (M3 (L-R) x 1)
Serial (D-sub 9-pin x 1)
LAN/ Digital Link (RJ-45 x 1)

ایران پاناسونیک

آدرس سایت:www.iranpanasonic.ir

تلفن: [phone]

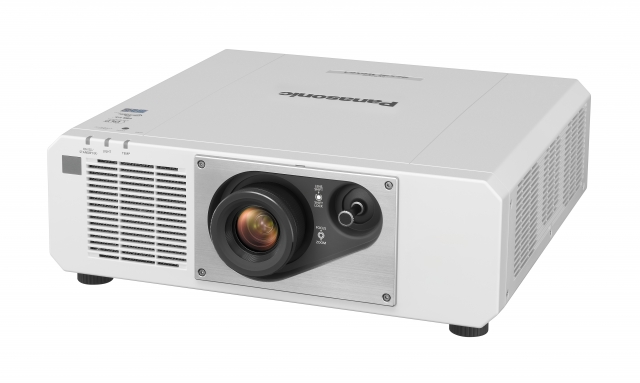

ویدئو پروژکتور پاناسونیکPT-RZ570W

ویدئو پروژکتور پاناسونیکPT-RZ570W

Power Supply
AC 100-240 V, 50/60 Hz
Power Consumption
500 W (520 VA, 100 V AC), (375 W with OPERATING MODE set to NORMAL, 350 W with OPERATING MODE set to ECO or SILENT, 40 W with the shutter closed, [Picture Mode: Standard, Dynamic Contrast: ON]), (0.5 W with STANDBY MODE set to ECO2, 10 W with STANDBY MODE set to NORMAL), (22 W with STANDBY MODE in AUDIO SETTING set to ON and QUICK STARTUP function disabled, 50 W with QUICK STARTUP function enabled).
DLP chip
Panel size: 17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
Display method: DLP chip x 1, DLP projection system
Pixels: 2,304,000 (1,920 x 1,200) pixels
Lens
2.0x manual zoom (throw ratio: 1.46-2.94:1), manual focus, F 2.0-3.4, f 21.5-43.0 mm
Light source
Laser diode (Laser class: Class 1), Luminance life: 20,000 hours at half luminance (Normal Mode, Temperature: 35 deg. C [95 deg. F], Altitude: 700 m [2,297 ft], Dust: 0.15 mg/m^3)
Screen size
Diagonal: 1.02-7.62 m (40-300 in), 16:10 aspect ratio
Brightness
5,400 lm (center) / 5,200 lm
Center-to-corner uniformity
90 %
Contrast
20,000:1 (full on/full off, Dynamic Mode and Dynamic Contrast: ON)
Resolution
1920 x 1200 pixels
Scanning frequency
HDMI/DVI-D/ DIGITAL LINK: fH: 27-100 kHz, fV: 24-120 Hz, dot clock: 25-162 MHz, 480i (525i), 576i (625i), 480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p, 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080 (1125)/24p, 1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 (1125)/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200), compatible with non-interlaced signals only.
RGB: fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz
Scanning frequency (cont..)
YPBPR (YCBCR): fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p
Optical Axis Shift
Vertical: +64 %, -44 % (manual)
Horizontal: +34 %, -27 % (manual)
Keystone correction range
Vertical: +/- 40drg., horizontal: +/-20 deg. (up to a total of +/-60 deg. during simultaneous horizontal and vertical correction)
Installation
Ceiling/floor, front/rear, 360-degree free installation
HDMI In
2x HDMI 19-pin (Deep Color, compatible with HDCP), audio signal: Linear PCM (sampling frequency: 48 kHz/44.1 kHz/32 kHz)
DVI-D In
1x DVI-D 24-pin (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
Computer 1 In
1x D-sub HD 15-pin (female) (1x RGB/YPBPR/YCBCR/YC)
Computer 2 IN/ 1 Out
1x D-sub HD 15-pin (female) (1x RGB/YPBPR/YCBCR), (input/output selectable using on-screen menu)
Video In
1x Pin jack (composite video)
Audio In 1
2x Pin jack (1x L, 1x R)
Audio In 2
1x M3 (1x L-R)
Audio In 3
1x M3 (1x L-R)
Audio Out
1x M3 (1x L-R) (variable)
Serial In
D-sub 9-pin (female) 1x for external control (RS-232C compliant)
LAN
RJ-45 x 1 for network connection, 10Base-T/100Base-TX, compatible with Art-Net, compliant with PJLink (Class 1)
Digital Link
RJ-45 x 1 for network/DIGITAL LINK connection (video/audio/network/serial control), 100BASE-TX, compatible with Art-Net, Deep Color, HDCP, compliant with PJLink (Class 1)
USB
Type A x 1 (5 V, 900 mA)
Cabinet materials
Molded plastic
Operation noise
28 dB (Silent Mode), 33 dB (Normal/Eco Mode)
Operating Temperature:
0 to 45 deg. C / 32 to 113 deg. F
Operating Humidity
10- 80 % (no condensation)
Dimensions (W x H x D)
498 x 168 x 492mm / 19.61 x 6.61 x 19.37"
Weight
6.3kg / 13.89lbs (Approx.)

 ایران پاناسونیک

آدرس سایت:www.iranpanasonic.ir

تلفن: [phone]

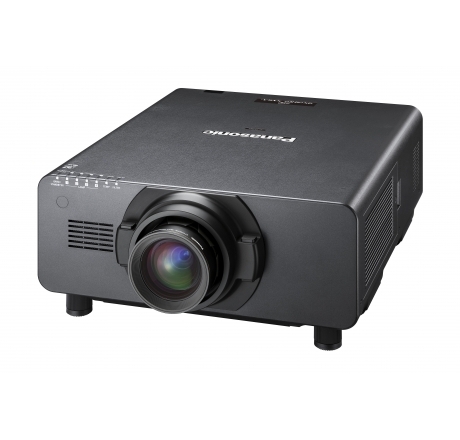

ویدئو پروژکتور پاناسونیکPT-DS20K2

ویدئو پروژکتور پاناسونیکPT-DS20K2

DLP™ chip Panel size                                                                      24.1 mm (0.95 inches) diagonal
(4:3 aspect ratio)
                  Display method                                                             DLP™ chip x 3, DLP™ projection system
                  Pixels                                                                            1,470,000 (1,400 x 1,050) x 3,
total of 4,410,000 pixels
Refresh Rate                                                                                    120 Hz
Lamp          Normal                                                                          UHM lamp x 4 (432 W), replacement cycle of up to 3,000 hours*3
                  Portrait                                                                          UHM lamp x 4 (432 W), replacement cycle of up to 700 hours
Brightness                                                                                       20,000 lm (four-lamp)
Contrast ratio                                                                                   10,000:1 (full on/full off, in Dynamic iris mode 3)
Resolution                                                                                       1,400 x 1,050 pixels
Lens                                                                                                Optional powered zoom and fixed-focus lenses
Screen size (diagonal)                                                                     1.78-25.4 m (70-1,000 in),
1.78-7.62 m (70-300 in) with the ET-D75LE50,
3.05-15.24 m (120-600 in) with the ET-D75LE90,
1.78-15.24 m (70-600 in) with the ET-D75LE8,
4:3 aspect ratio
Center-to-corner uniformity                                                              90 %
Optical axis shift                                                                              Vertical    ±50 % (±40 % with the ET-D75LE6,
+71 % (fixed) with the ET-D75LE90) (powered)
                  Horizontal                                                                      ±30 % (±20 % with the ET-D75LE6,
±0 % (non-movable) with the ET-D75LE90) (powered)
Scanning frequency                                                                         SDI           SD-SDI             SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i, 576i
                         HD-SDI                                                                   SMPTE ST 292 compliant,
[YPBPR 4:2:2 10-bit] 720/50p, 720/60p, 1035/60i, 1080/50i,
1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
                         3G-SDI                                                                    SMPTE ST 424 compliant,
[YPBPR 4:2:2 10-bit] 1080/50p, 1080/60p,
[RGB 4:4:4 12-bit /10-bit] 1080/50i, 1080/60i, 1080/25p,
1080/24p, 1080/24sF, 1080/30p
                         Dual-link HD-SDI                                                     SMPTE ST 372 compliant,
[RGB 4:4:4 12-bit /10-bit] 1080/50i, 1080/60i, 1080/25p,
1080/24p, 1080/24sF, 1080/30p,
[X´Y´Z´ 4:4:4 12-bit] 2048 x 1080/24p, 2048 x 1080/24sF
                         Dual-link
3G-SDI        SMPTE ST 425 compliant,
[YPBPR 4:4:4 12-bit / 10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p,
2048 x 1080/50p, 2048 x 1080/48p,
[RGB 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p
                  HDMI/DVI-D/
DIGITAL LINK                                                                                  480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF,
1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA*6 (1920 x 1200),
compatible with non-interlaced signals only, dot clock: 25-162 MHz
                  DVI-D/HDMI
simultaneous
input          1920 x 1200p, 1920 x 1080p, 1400 x 1050p, 1366 x 768p, 120 Hz/100 Hz
                  RGB                                                                               fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 13.5-162 MHz
                  YPBPR (YCBCR)                                                            fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]                                          fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
                  Video/YC                                                                       fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Terminals   SDI IN                                                                            BNC x 2 (3G/HD/SD-SDI)
                  DVI-D IN                                                                         DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP,
compatible with single link only)
                  HDMI IN                                                                         HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
                  RGB 1 IN                                                                        BNC x 5 (RGB/YPBPR/YCBCR/YC x 1)
                  RGB 2 IN                                                                        D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
                  3D SYNC IN/OUT                                                            BNC x 1 (3D timing signal)
                  3D SYNC OUT                                                                BNC x 1 (3D timing signal)
                  SERIAL IN                                                                     D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
                  SERIAL OUT                                                                  D-sub 9-pin (male) x 1 for link control
                  REMOTE 1 IN                                                                 M3 x 1 for wired remote control
                  REMOTE 1 OUT                                                             M3 x 1 for link control (for wired remote control)
                  REMOTE 2 IN                                                                 D-sub 9-pin (female) x 1 for external control (parallel)
                  LAN / Digital Link                                                          RJ-45 x 1 (for network, DIGITAL LINK connection, 100Base-TX,
compatible with Art-Net, PJLink™ (class 1), Deep Color, HDCP)
Keystone correction range                                                               Vertical: ±40°*6, horizontal: ±15°
Installation                                                                                       Ceiling/floor, front/rear, portrait
Cabinet materials                                                                             Molded plastic
Power supply                                                                                   200–240 V AC, 50/60 Hz
Power consumption                                                                         2,060 W (0.3 W with STANDBY MODE set to ECO,*1
4 W with STANDBY MODE set to NORMAL.)
Dimensions (W x H x D)                                                                   620 x 255 x 730 mm (24-13/32 x 10-1/32 x 28-3/4 in)
(optional lens, legs and lens cover not included)
Weight                                                                                             Approx. 41 kg (90.4 lbs) (optional lens not included)
Operation noise                                                                               46 dB
Operating temperature                                                                     0–45°C (32–113°F)
Operating humidity                                                                          10– 80 % (no condensation)

ایران پاناسونیک

آدرس سایت:www.iranpanasonic.ir

تلفن: [phone]

ویدئو پروژکتور پاناسونیکPT-DZ21K2

ویدئو پروژکتور پاناسونیکPT-DZ21K2

DLP™ chip Panel size                                                                      24.4 mm (0.96 inches) diagonal
(16:10 aspect ratio)
                  Display method                                                             DLP™ chip x 3, DLP™ projection system
                  Pixels                                                                            2,304,000 (1,920 x 1,200) x 3,
total of 6,912,000 pixels
Refresh Rate                                                                                    120 Hz
Lamp          Normal                                                                          UHM lamp x 4 (432 W), replacement cycle of up to 3,000 hours*3
                  Portrait                                                                          UHM lamp x 4 (432 W), replacement cycle of up to 700 hours
Brightness                                                                                       20,000 lm (four-lamp)
Contrast ratio                                                                                   10,000:1 (full on/full off, in Dynamic iris mode 3)
Resolution                                                                                       1,920 x 1,200 pixels
Lens                                                                                                Optional powered zoom and fixed-focus lenses
Screen size (diagonal)                                                                     1.78-25.4 m (70-1,000 in),
1.78-7.62 m (70-300 in)
with the ET-D75LE50,
3.05-15.24 m (120-600 in)
with the ET-D75LE90,
1.78-15.24 m (70-600 in)
with the ET-D75LE8,
16:10 aspect ratio
Center-to-corner uniformity                                                              90 %
Optical axis shift                                                                              Vertical     ±55 % (±44 % with the ET-D75LE6,
+73 - +78 % with the ET-D75LE90) (powered
                  Horizontal                                                                      ±20 % (±15 % with the ET-D75LE6,
±6 % with the ET-D75LE90) (powered)
Scanning frequency                                                                         SDI           SD-SDI             SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i, 576i
                         HD-SDI                                                                   SMPTE ST 292 compliant,
[YPBPR 4:2:2 10-bit] 720/50p, 720/60p, 1035/60i, 1080/50i,
1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
                         3G-SDI                                                                    SMPTE ST 424 compliant,
[YPBPR 4:2:2 10-bit] 1080/50p, 1080/60p,
[RGB 4:4:4 12-bit /10-bit] 1080/50i, 1080/60i, 1080/25p,
1080/24p, 1080/24sF, 1080/30p
                         Dual-link HD-SDI                                                     SMPTE ST 372 compliant,
[RGB 4:4:4 12-bit /10-bit] 1080/50i, 1080/60i, 1080/25p,
1080/24p, 1080/24sF, 1080/30p,
[X´Y´Z´ 4:4:4 12-bit] 2048 x 1080/24p, 2048 x 1080/24sF
                         Dual-link
3G-SDI        SMPTE ST 425 compliant,
[YPBPR 4:4:4 12-bit / 10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p,
2048 x 1080/50p, 2048 x 1080/48p,
[RGB 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p
                  HDMI/DVI-D/
DIGITAL LINK                                                                                  480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF,
1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA*6 (1920 x 1200),
compatible with non-interlaced signals only, dot clock: 25-162 MHz
                  DVI-D/HDMI
simultaneous
input          1920 x 1200p, 1920 x 1080p, 1400 x 1050p, 1366 x 768p, 120 Hz/100 Hz
                  RGB                                                                               fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 13.5-162 MHz
                  YPBPR (YCBCR)                                                            fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]                                          fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
                  Video/YC                                                                       fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Terminals   SDI IN                                                                            BNC x 2 (3G/HD/SD-SDI)
                  DVI-D IN                                                                         DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP,
compatible with single link only)
                  HDMI IN                                                                         HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
                  RGB 1 IN                                                                        BNC x 5 (RGB/YPBPR/YCBCR/YC x 1)
                  RGB 2 IN                                                                        D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
                  3D SYNC IN/OUT                                                            BNC x 1 (3D timing signal)
                  3D SYNC OUT                                                                BNC x 1 (3D timing signal)
                  SERIAL IN                                                                     D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
                  SERIAL OUT                                                                  D-sub 9-pin (male) x 1 for link control
                  REMOTE 1 IN                                                                 M3 x 1 for wired remote control
                  REMOTE 1 OUT                                                             M3 x 1 for link control (for wired remote control)
                  REMOTE 2 IN                                                                 D-sub 9-pin (female) x 1 for external control (parallel)
                  LAN / Digital Link                                                          RJ-45 x 1 (for network, DIGITAL LINK connection, 100Base-TX,
compatible with Art-Net, PJLink™ (class 1), Deep Color, HDCP)
Keystone correction range                                                               Vertical: ±40°*6, horizontal: ±15°
Installation                                                                                       Ceiling/floor, front/rear, portrait
Cabinet materials                                                                             Molded plastic
Power supply                                                                                   200–240 V AC, 50/60 Hz
Power consumption                                                                         2,060 W (0.3 W with STANDBY MODE set to ECO,*1
4 W with STANDBY MODE set to NORMAL.)
Dimensions (W x H x D)                                                                   620 x 255 x 730 mm (24-13/32 x 10-1/32 x 28-3/4 in)
(optional lens, legs and lens cover not included)
Weight                                                                                             Approx. 41 kg (90.4 lbs) (optional lens not included)
Operation noise                                                                               46 dB
Operating temperature                                                                     0–45°C (32–113°F)
Operating humidity                                                                          10– 80 % (no condensation)

ایران پاناسونیک

آدرس سایت:www.iranpanasonic.ir

تلفن: [phone]

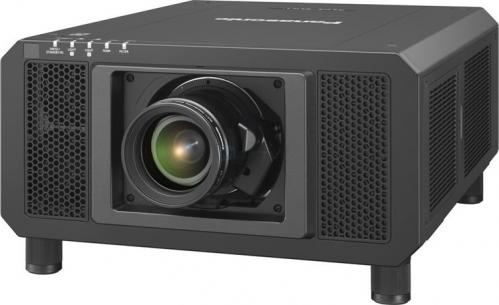

ویدئو پروژکتور پاناسونیکPT-RS11K

ویدئو پروژکتور پاناسونیکPT-RS11K



Digital Inputs:                                            HDMI
HDBaseT:                                                  No
Contrast(Full On/Off):                              20,000:1
Auto Iris:                                                     **
Native Resolution:                                     1400x1050
Aspect Ratio:                                             4:3 (SXGA+)
Video Modes:                                             720p, 1080i, 1080p/60
1080p/24, 1080p/25, 1080p/30
1080p/50, 576i, 576p
480p, 480i
Data Modes:                                               **
Weight:                                                       44.0 kg
Brightness:                                                  12,000 Lumens
Size(cm) (HxWxD):                                    32 x 58 x 74
Max Power:                                               1,200 Watts
Voltage:                                                      100V - 240V
** item is not applicable, unpublished, or unknown


ایران پاناسونیک

آدرس سایت:www.iranpanasonic.ir

تلفن: [phone]
