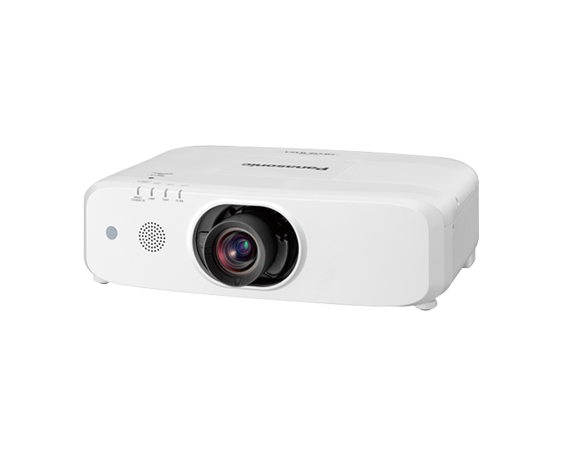

ویدئو پروژکتور پاناسونیک PT-EZ570
General Power supply 100 – 240 V AC, 50/60 Hz
Power consumption 490 W (0.4 W with STANDBY MODE set to ECO,*1
11 W with STANDBY MODE set to NETWORK.)
LCD panel Panel size 19.2 mm (0.76 inches)
diagonal (16:10 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Drive method Active matrix
Pixels 2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels
Lens PT-EZ570 / EW630 / EX600 Powered zoom (throw ratio 1.7–2.8:1), powered focus F 1.7–2.3, f 26.9–45.4 mm
PT-EZ570L / EW630L / EX600L Optional powered zoom/focus lenses and fixed-focus lens
Lamp 330 W UHM lamp x 1, lamp replacement cycle: 4,000 hours*2
Screen size (diagonal) 1.02–10.16 m (40–400 inches)
(16:10 aspect ratio)
Color reproducibility Full color (1,073,741,824 colors)
Brightness*3 5,000 lm (lamp power: Auto/Normal)
Center-to-corner uniformity*3 90%
Contrast*3 5,000:1 (full on/off, lamp power: Auto/Normal, iris: On)
Resolution 1,920 x 1,200 pixels*4
Scanning frequency HDMI/DVI-D (Horizontal) 26–80 kHz; (Vertical) 23–85 Hz; (Dot clock) 162 MHz or lower
RGB (analog) (Horizontal) 15–120 kHz;
(Vertical) 48–100 Hz;
(Dot clock) 230 MHz or lower
(Signals exceeding the dot clock rate of 163 MHz are downsampled.)
YPBPR (YCBCR) fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 28.13 kHz, fV: 50 Hz [1080/25sF]
fH: 27.00 kHz, fV: 48 Hz [1080/24sF]
fH: 33.75 kHz, fV: 60 Hz [1080/30sF]
fH: 56.25 kHz, fV: 50 Hz [1080/50p]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080/25p]
fH: 27.00 kHz, fV: 24 Hz [1080/24p]
fH: 33.75 kHz, fV: 30 Hz [1080/30p]
fH: 67.50 kHz, fV: 60 Hz [1080/60p]
Video/S-Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift*5 Vertical ±60% from center of screen (powered)
Horizontal ±10% from center of screen (powered)
Keystone correction range Horizontal: ±30°*6, vertical: ±30°*6
Installation Ceiling/floor, front/rear
Built-in speaker 3.7 cm round shape x 1, output power 10.0 W (monaural)
Terminals INPUT 1 - DVI-D IN DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
INPUT 1 - HDMI IN HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
INPUT 1 - RGB IN D-sub HD 15-pin (female) x 1 (RGB x 1)
INPUT 2 - RGB 5BNC IN/ VIDEO IN BNC x 5 (RGB/YPBPR/YCBCR x 1), shared with VIDEO IN (BNC x 1) (composite video)
INPUT 3 - COMPONENT/ VIDEO IN RCA x 3 (YPBPR/YCBCR/composite video x 1)
INPUT 3 - S-VIDEO IN Mini DIN 4-pin x 1
MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB x 1)
AUDIO IN 1 M3 x 1 (L-R x 1)
AUDIO IN 2 M3 x 1 (L-R x 1)
AUDIO IN 3 RCA pin x 2 (L/R x 1) for VIDEO/S-VIDEO input
AUDIO OUT M3 x 1 (L-R x 1) for output (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
REMOTE IN M3 Jack x 1 (for wired remote control)
LAN RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T, compliant with PJLink™ (class 1))
Cabinet materials Molded plastic (PC + ABS)
Dimensions (W x H x D) PT-EZ570 / EW630 / EX600 489.5 x 164*8 x 434 mm (19.3" x 6.5"*8 x 17.1") (with supplied lens)
PT-EZ570L / EW630L / EX600L 489.5 x 164*8 x 370 mm (19.3" x 6.5"*8 x 14.6") (without lens)
Weightl*7 PT-EZ570 / EW630 / EX600 Approximately 10.3 kg (22.7 lbs) (with supplied lens)
PT-EZ570L / EW630L / EX600L Approximately 9.6 kg (21.2 lbs) (with supplied lens)
Noise level*7 37 dB (Lamp power: Normal); 31 dB (Lamp power: Eco1 or Eco2)
Operating temperature 0°C–40°C (32°F–104°F)*9
Operating humidity 20% - 80% (no condensation)
Supplied accessories Power cord x 1 ( x 2 for PT-EZ570E/EZ570EL, PT-EW630/EW630EL, PT-EX600E/EX600EL), power cord holder/power cord cover x 1, wireless/wired remote control unit x 1, batteries (AAA/R03/LR03 type x 2), computer cable (1.8 m, for VGA) x 1, Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) x1,
NOTE * Product numbers vary depending on the market. The general guideline is as follows:
The product numbers in the Americas and Taiwan are PT-EZ570U/PT-EZ570UL, PT-EW630U/PT-EW630UL and PT-EZ570U/PT-EZ570UL.
The product numbers in Europe, CIS, Asia (except Taiwan), Oceania, Middle East, and Africa are PT-EZ570E/PT-EZ570EL, PT-EW630E/PT-EW630EL and PT-EZ570E/PT-EZ570EL.
*The PT-EZ570L/EW630L/EX600L delivers the same performance as the PT-EZ570/EW630/EX600, but comes without a lens.
*1 When the STANDBY MODE is set to ECO, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2 This is the maximum value when the lamp power is set to Eco1 or Eco2 mode where the lamp is turned on for 2 hours and off for 0.25 hours. If the lamp is turned on more times or kept on for a long time, the lamp replacement cycle will shorten. In Normal mode, the lamp replacement cycle is 3,000 hours. The usage environment affects the duration of the lamp
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Input signals that exceed the native resolution will be converted to the native resolution.
*5 The axis shift function cannot be used with the ET-ELW21 .
*6 With the supplied lens. Value differs when the correction for both directions is operated.
*7 Average value. May differ depending on models.
*8 With legs at shortest position.
*9 The operating temperature range is 0 °C to 30 °C (32 °F to 86 °F) when the fan control is set to ON 1 for altitudes from 1,000 m to 2,000 m (3,281 ft to 6,562 ft) above sea level, 0 °C to 30 °C (32 °F to 86 °F) when the fan control is set to ON 2 for altitudes from 2,000 m to 2,700 m (6,562 ft to 8,858 ft) above sea level.
General Power supply 100 – 240 V AC, 50/60 Hz
Power consumption 490 W (0.4 W with STANDBY MODE set to ECO,*1
11 W with STANDBY MODE set to NETWORK.)
LCD panel Panel size 19.2 mm (0.76 inches)
diagonal (16:10 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Drive method Active matrix
Pixels 2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels
Lens PT-EZ570 / EW630 / EX600 Powered zoom (throw ratio 1.7–2.8:1), powered focus F 1.7–2.3, f 26.9–45.4 mm
PT-EZ570L / EW630L / EX600L Optional powered zoom/focus lenses and fixed-focus lens
Lamp 330 W UHM lamp x 1, lamp replacement cycle: 4,000 hours*2
Screen size (diagonal) 1.02–10.16 m (40–400 inches)
(16:10 aspect ratio)
Color reproducibility Full color (1,073,741,824 colors)
Brightness*3 5,000 lm (lamp power: Auto/Normal)
Center-to-corner uniformity*3 90%
Contrast*3 5,000:1 (full on/off, lamp power: Auto/Normal, iris: On)
Resolution 1,920 x 1,200 pixels*4
Scanning frequency HDMI/DVI-D (Horizontal) 26–80 kHz; (Vertical) 23–85 Hz; (Dot clock) 162 MHz or lower
RGB (analog) (Horizontal) 15–120 kHz;
(Vertical) 48–100 Hz;
(Dot clock) 230 MHz or lower
(Signals exceeding the dot clock rate of 163 MHz are downsampled.)
YPBPR (YCBCR) fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 28.13 kHz, fV: 50 Hz [1080/25sF]
fH: 27.00 kHz, fV: 48 Hz [1080/24sF]
fH: 33.75 kHz, fV: 60 Hz [1080/30sF]
fH: 56.25 kHz, fV: 50 Hz [1080/50p]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080/25p]
fH: 27.00 kHz, fV: 24 Hz [1080/24p]
fH: 33.75 kHz, fV: 30 Hz [1080/30p]
fH: 67.50 kHz, fV: 60 Hz [1080/60p]
Video/S-Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift*5 Vertical ±60% from center of screen (powered)
Horizontal ±10% from center of screen (powered)
Keystone correction range Horizontal: ±30°*6, vertical: ±30°*6
Installation Ceiling/floor, front/rear
Built-in speaker 3.7 cm round shape x 1, output power 10.0 W (monaural)
Terminals INPUT 1 - DVI-D IN DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
INPUT 1 - HDMI IN HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
INPUT 1 - RGB IN D-sub HD 15-pin (female) x 1 (RGB x 1)
INPUT 2 - RGB 5BNC IN/ VIDEO IN BNC x 5 (RGB/YPBPR/YCBCR x 1), shared with VIDEO IN (BNC x 1) (composite video)
INPUT 3 - COMPONENT/ VIDEO IN RCA x 3 (YPBPR/YCBCR/composite video x 1)
INPUT 3 - S-VIDEO IN Mini DIN 4-pin x 1
MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB x 1)
AUDIO IN 1 M3 x 1 (L-R x 1)
AUDIO IN 2 M3 x 1 (L-R x 1)
AUDIO IN 3 RCA pin x 2 (L/R x 1) for VIDEO/S-VIDEO input
AUDIO OUT M3 x 1 (L-R x 1) for output (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
REMOTE IN M3 Jack x 1 (for wired remote control)
LAN RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T, compliant with PJLink™ (class 1))
Cabinet materials Molded plastic (PC + ABS)
Dimensions (W x H x D) PT-EZ570 / EW630 / EX600 489.5 x 164*8 x 434 mm (19.3" x 6.5"*8 x 17.1") (with supplied lens)
PT-EZ570L / EW630L / EX600L 489.5 x 164*8 x 370 mm (19.3" x 6.5"*8 x 14.6") (without lens)
Weightl*7 PT-EZ570 / EW630 / EX600 Approximately 10.3 kg (22.7 lbs) (with supplied lens)
PT-EZ570L / EW630L / EX600L Approximately 9.6 kg (21.2 lbs) (with supplied lens)
Noise level*7 37 dB (Lamp power: Normal); 31 dB (Lamp power: Eco1 or Eco2)
Operating temperature 0°C–40°C (32°F–104°F)*9
Operating humidity 20% - 80% (no condensation)
Supplied accessories Power cord x 1 ( x 2 for PT-EZ570E/EZ570EL, PT-EW630/EW630EL, PT-EX600E/EX600EL), power cord holder/power cord cover x 1, wireless/wired remote control unit x 1, batteries (AAA/R03/LR03 type x 2), computer cable (1.8 m, for VGA) x 1, Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) x1,
NOTE * Product numbers vary depending on the market. The general guideline is as follows:
The product numbers in the Americas and Taiwan are PT-EZ570U/PT-EZ570UL, PT-EW630U/PT-EW630UL and PT-EZ570U/PT-EZ570UL.
The product numbers in Europe, CIS, Asia (except Taiwan), Oceania, Middle East, and Africa are PT-EZ570E/PT-EZ570EL, PT-EW630E/PT-EW630EL and PT-EZ570E/PT-EZ570EL.
*The PT-EZ570L/EW630L/EX600L delivers the same performance as the PT-EZ570/EW630/EX600, but comes without a lens.
*1 When the STANDBY MODE is set to ECO, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2 This is the maximum value when the lamp power is set to Eco1 or Eco2 mode where the lamp is turned on for 2 hours and off for 0.25 hours. If the lamp is turned on more times or kept on for a long time, the lamp replacement cycle will shorten. In Normal mode, the lamp replacement cycle is 3,000 hours. The usage environment affects the duration of the lamp
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Input signals that exceed the native resolution will be converted to the native resolution.
*5 The axis shift function cannot be used with the ET-ELW21 .
*6 With the supplied lens. Value differs when the correction for both directions is operated.
*7 Average value. May differ depending on models.
*8 With legs at shortest position.
*9 The operating temperature range is 0 °C to 30 °C (32 °F to 86 °F) when the fan control is set to ON 1 for altitudes from 1,000 m to 2,000 m (3,281 ft to 6,562 ft) above sea level, 0 °C to 30 °C (32 °F to 86 °F) when the fan control is set to ON 2 for altitudes from 2,000 m to 2,700 m (6,562 ft to 8,858 ft) above sea level.
ایران پاناسونیک
تلفن:77615100
تلفن:77615100
آدرس سایت:www.iranpanasonic.ir

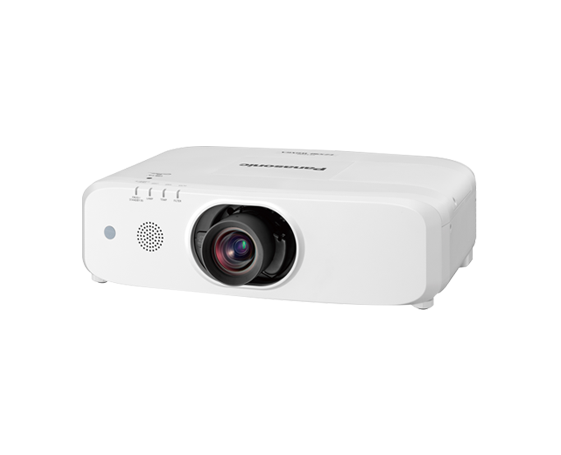

ویدئو پروژکتور پاناسونیک PT-EW540
ویدئو پروژکتور پاناسونیک PT-EW540
Panel Type 0.76" LCD panel x 3
Lamp 335W UHM
Brightness 5,000 lumens
Lens F1.7-2.3, f26.9-45.4mm (powered zoom: 1.7-2.8:1)
Contrast (Full on / Full off) 2,000:1
Resolution (Native / maximum) WXGA
H-Sync/V-Sync Range 15-120 kHz / 48-100Hz
Video Compatibility PAL, PAL-M, PAL-N, PAL60, SECAM, NTSC, NTSC4.43
Screen Size 40" - 400"
Lens Shift Vertical ±60%, horizontal ±10%
Keystone Correction Range Vertical ±40° or horizontal ±30%
Weight approximately 10.6kg
Dimensions (W x H x D) 530 x 177 x 445 mm
Power Consumption 485W
Terminals DVI-D in(24-pin x 1, HDCP-compatible)
HDMI in (19-pin x 1)
RGB1&2 in (D-sub HD 15-pin x 1, BNC x 5)
Video (BNC x 1)
Monitor out (D-sub 15-pin x 1)
Audio in (Pin Jack (L/R) x 1, M3 x 2
Audio out (M3 x 1)
Serial in (D-sub 9-pin x 1)
remote in (M3 x 1)
LAN(RJ-45 x 1)
Replacement Lamp ET-LAE300
Optional Accessories ET-RFE300 (Replacement filter)
ET-PKE300B (Bracket assembly)
ET-PKD120H (High ceiling mount bracket)
ET-PKD120S (Low ceiling mount bracket)
Optional Lens Zoom lens ET-ELW22 (0.8-1.0:1)
ET-ELW20 (1.3-1.7:1)
ET-ELT20 (2.8-4.6:1)
ET-ELT21 (4.6-7.2:1)
Fixed focus lens ET-ELW21 (0.8:1)
ایران پاناسونیک
تلفن:77615100
آدرس سایت:www.iranpanasonic.ir

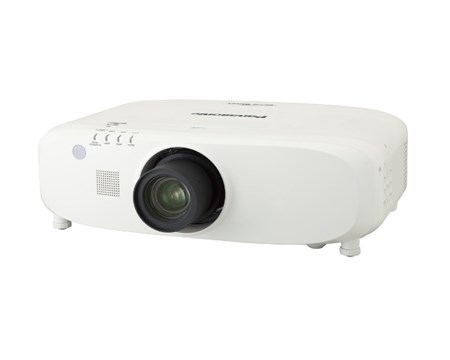

ویدئو پروژکتور پاناسونیک PT-EW640
ویدئو پروژکتور پاناسونیک PT-EW640
Panel Type 0.76" LCD panel x 3
Lamp 335W UHM
Brightness 5,800 lumens
Lens F1.7-2.3, f26.9-45.4mm (powered zoom: 1.7-2.8:1)
Contrast (Full on / Full off) 5,000:1
Resolution (Native / maximum) WXGA
H-Sync/V-Sync Range 15-120 kHz / 48-100Hz
Video Compatibility PAL, PAL-M, PAL-N, PAL60, SECAM, NTSC, NTSC4.43
Screen Size 40" - 400"
Lens Shift Vertical ±60%, horizontal ±10%
Keystone Correction Range Vertical ±40° or horizontal ±30%
Weight approximately 10.6kg
Dimensions (W x H x D) 530 x 177 x 445 mm
Power Consumption 495W
Terminals DVI-D in(24-pin x 1, HDCP-compatible)
HDMI in (19-pin x 1)
Display Port in (20-pin x 1)
RGB1&2 in (D-sub HD 15-pin x 1, BNC x 5)
Video (BNC x 1)
Monitor out (D-sub 15-pin x 1)
Audio in (Pin Jack (L/R) x 1, M3 x 2
Audio out (M3 x 1)
Serial in (D-sub 9-pin x 1)
remote in (M3 x 1)
LAN/Digital Link (RJ-45 x 1)
Replacement Lamp ET-LAE300
Optional Accessories ET-RFE300 (Replacement filter)
ET-PKE300B (Bracket assembly)
ET-PKD120H (High ceiling mount bracket)
ET-PKD120S (Low ceiling mount bracket)
Optional Lens Zoom lens ET-ELW22 (0.8-1.0:1)
ET-ELW20 (1.3-1.7:1)
ET-ELT20 (2.8-4.6:1)
ET-ELT21 (4.6-7.2:1)
Fixed focus lens ET-ELW21 (0.8:1)
ایران پاناسونیک
تلفن:77615100
تلفن:77615100
آدرس سایت:www.iranpanasonic.ir
ویدئو پروژکتور پاناسونیک PT-EZ590
ویدئو پروژکتور پاناسونیک PT-EZ590
Power supply 100-240 V AC, 50/60 Hz
Power consumption 484 W (0.3 W with Standby Mode set to Eco*1, 12 W with Standby Mode set to Normal)
LCD Panel Panel size 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Display method Transparent LCD panel (x3, R/G/B)
Drive method Active matrix
Pixels 2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels
Lens PT-EZ590 Powered zoom (throw ratio 1.22-2.26:1), powered focus, F 1.6-2.2, f 17.1-31.7 mm
Lamp 320 W UHM lamp x 1
Lamp replacement cycle 4,000 hours*2 (lamp power: Normal), 5,000 hours*2 (lamp power: Eco)
Screen size (diagonal) 1.03-10.57 m (40-400 in), 16:10 aspect ratio
Brightness*3 5,400 lm (lamp power: Auto/Normal, Dynamic Mode, standard lens)
Center-to-corner uniformity*3 90%
Contrast*3 10,000:1 (full on/full off, lamp power: Auto, Iris: ON)
Resolution 1,920 x 1,200 pixels*4
Scanning HDMI Dot clock: 25-162 MHz
Frequency DIGITAL LINK (VGA: 640 x 480 pixels to WUXGA: 1,920 x 1,200 pixels, VESA CVT-RB compliant with HDCP)
(DIGITAL LINK not included on PT-EW550/EW550L.)
RGB fH: 15-91 kHz, fV: 24-120 Hz, dot clock: up to 162 MHz
YPBPR (YCBCR) fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
Video/YC fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis Vertical ±60% (powered)
Shift Horizontal ±30% (powered)
Keystone correction range*5 Vertical ±30°, horizontal ±25°
Installation Ceiling/floor, front/rear
Built-in speaker 3.7 cm round shape × 1, output power: 10.0 W (monaural)
Terminals HDMI IN HDMI 19-pin x 2 (Deep Color, compatible with HDCP),
audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
RGB 1 IN BNC x 5 (RGB or YPBPR/YCBCR x 1), shared with VIDEO IN (S-video/composite video)
RGB 2 IN D-Sub HD 15-pin (female) x 1
VIDEO IN Pin jack x 1 (composite video)
MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB x 1) (compatible with RGB or YPBPR/YCBCR)
AUDIO IN Pin jack x 2 (L/R x 1), M3 x 2 (L-R x 2)
AUDIO OUT M3 x 1 (L-R x 1) for output (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
REMOTE 1 IN M3 x 1 for wired remote control
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX, compatible with PJLink™
DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connection,
100Base-TX, compatible with PJLink™, HDCP, Deep Color
USB-A 2 (Network/Wireless x 1, 5 V/0.9 A x 1)
Operation noise*3 35 dB (lamp power: Normal), 29 dB (lamp power: ECO)
Filter x1, replacement cycle: up to 15,000 hours*6
Mechanical shutter Yes
Cabinet materials Molded plastic (PC + ABS)
Dimensions (W x H x D) PT-EZ590 498 x 145*7 x 398.3 mm (19-19/32 x 5-23/32*7 x 15-11/16 in) (with supplied lens)
Weight*8 PT-EZ590 Approx. 9.0 kg (19.8 lbs) (with supplied lens)
Operating environment Operating temperature: 0-45 °C (32-113 °F)*9,
operating humidity: 20-80 % (no condensation)
Note: The PT-EZ590L/EW650L/EW550L delivers the same performance as the PT-EZ590/EW650/EW550, but comes without a lens.
*1 When Standby Mode is set to Eco, network functions such as power on over LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2 This is the maximum value when the lamp is turned on for 2 hours and off for 0.25 hours. If the lamp is turned on more times or kept on for a long time, lamp replacement cycle will shorten. Usage environment affects the duration of the lamp.
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Input signals that exceed supported resolution will be converted.
*5 With the supplied lens. Value differs when the correction for both directions is operated.
*6 Usage environment affects the duration of the filter.
*7 With legs at shortest position.
*8 Average value. May differ depending on models.
*9 Operating temperature range is 0 °C to 40 °C (32 °F to 104 °F) when used at altitudes from 1,400 m to 2,700 m (4,593 ft to 8,858 ft) above sea level. Also, if ambient temperature exceeds 40 °C (104 °F) (35 °C [95 °F] at high altitude), lamp power may automatically switch to Eco to in order to protect the projector.
ایران پاناسونیک
تلفن:77615100
آدرس سایت:www.iranpanasonic.ir
ویدئو پروژکتور پاناسونیک PT-EW550
ویدئو پروژکتور پاناسونیک PT-EW550
Power supply 100-240 V AC, 50/60 Hz
Power consumption 484 W (0.3 W with Standby Mode set to Eco*1, 12 W with Standby Mode set to Normal)
LCD Panel Panel size 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Display method Transparent LCD panel (x3, R/G/B)
Drive method Active matrix
Pixels 1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels
Lens Powered zoom (throw ratio 1.22-2.26:1), powered focus, F 1.6-2.2, f 17.1-31.7 mm
Lamp 320 W UHM lamp x 1
Lamp replacement cycle 4,000 hours*2 (lamp power: Normal), 5,000 hours*2 (lamp power: Eco)
Screen size (diagonal) 1.03-10.57 m (40-400 in), 16:10 aspect ratio
Brightness*3 5,800 lm (lamp power: Auto/Normal, Dynamic Mode, standard lens)
Center-to-corner uniformity*3 -
Contrast*3 2,000:1 (full on/full off, lamp power: Auto)
Resolution 1,920 x 1,200 pixels*4
Scanning HDMI Dot clock: 25-162 MHz
Frequency DIGITAL LINK (VGA: 640 x 480 pixels to WUXGA: 1,920 x 1,200 pixels, VESA CVT-RB compliant with HDCP)
(DIGITAL LINK not included on PT-EW550/EW550L.)
RGB fH: 15-91 kHz, fV: 24-120 Hz, dot clock: up to 162 MHz
YPBPR (YCBCR) fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
Video/YC fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis Vertical ±60% (powered)
Shift Horizontal ±30% (powered)
Keystone correction range*5 Vertical ±30°, horizontal ±25°
Installation Ceiling/floor, front/rear
Built-in speaker 3.7 cm round shape × 1, output power: 10.0 W (monaural)
Terminals HDMI IN HDMI 19-pin x 2 (Deep Color, compatible with HDCP),
audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
RGB 1 IN BNC x 5 (RGB or YPBPR/YCBCR x 1), shared with VIDEO IN (S-video/composite video)
RGB 2 IN D-Sub HD 15-pin (female) x 1
VIDEO IN Pin jack x 1 (composite video)
MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB x 1) (compatible with RGB or YPBPR/YCBCR)
AUDIO IN Pin jack x 2 (L/R x 1), M3 x 2 (L-R x 2)
AUDIO OUT M3 x 1 (L-R x 1) for output (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
REMOTE 1 IN M3 x 1 for wired remote control
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX, compatible with PJLink™
DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connection,
100Base-TX, compatible with PJLink™, HDCP, Deep Color
USB-A 2 (Network/Wireless x 1, 5 V/0.9 A x 1)
Operation noise*3 35 dB (lamp power: Normal), 29 dB (lamp power: ECO)
Filter x1, replacement cycle: up to 15,000 hours*6
Mechanical shutter Yes
Cabinet materials Molded plastic (PC + ABS)
Dimensions (W x H x D) PT-EW550L 498 x 145*7 x 398.3 mm (19-19/32 x 5-23/32*7 x 15-11/16 in) (with supplied lens)
Weight*8 PT-EW550L Approx. 9.0 kg (19.8 lbs) (with supplied lens)
Operating environment Operating temperature: 0-45 °C (32-113 °F)*9,
operating humidity: 20-80 % (no condensation)
Note: The PT-EZ590L/EW650L/EW550L delivers the same performance as the PT-EZ590/EW650/EW550, but comes without a lens.
*1 When Standby Mode is set to Eco, network functions such as power on over LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2 This is the maximum value when the lamp is turned on for 2 hours and off for 0.25 hours. If the lamp is turned on more times or kept on for a long time, lamp replacement cycle will shorten. Usage environment affects the duration of the lamp.
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Input signals that exceed supported resolution will be converted.
*5 With the supplied lens. Value differs when the correction for both directions is operated.
*6 Usage environment affects the duration of the filter.
*7 With legs at shortest position.
*8 Average value. May differ depending on models.
*9 Operating temperature range is 0 °C to 40 °C (32 °F to 104 °F) when used at altitudes from 1,400 m to 2,700 m (4,593 ft to 8,858 ft) above sea level. Also, if ambient temperature exceeds 40 °C (104 °F) (35 °C [95 °F] at high altitude), lamp power may automatically switch to Eco to in order to protect the projector.
ایران پاناسونیک
تلفن:77615100
Power supply 100-240 V AC, 50/60 Hz
Power consumption 484 W (0.3 W with Standby Mode set to Eco*1, 12 W with Standby Mode set to Normal)
LCD Panel Panel size 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Display method Transparent LCD panel (x3, R/G/B)
Drive method Active matrix
Pixels 1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels
Lens Powered zoom (throw ratio 1.22-2.26:1), powered focus, F 1.6-2.2, f 17.1-31.7 mm
Lamp 320 W UHM lamp x 1
Lamp replacement cycle 4,000 hours*2 (lamp power: Normal), 5,000 hours*2 (lamp power: Eco)
Screen size (diagonal) 1.03-10.57 m (40-400 in), 16:10 aspect ratio
Brightness*3 5,800 lm (lamp power: Auto/Normal, Dynamic Mode, standard lens)
Center-to-corner uniformity*3 -
Contrast*3 2,000:1 (full on/full off, lamp power: Auto)
Resolution 1,920 x 1,200 pixels*4
Scanning HDMI Dot clock: 25-162 MHz
Frequency DIGITAL LINK (VGA: 640 x 480 pixels to WUXGA: 1,920 x 1,200 pixels, VESA CVT-RB compliant with HDCP)
(DIGITAL LINK not included on PT-EW550/EW550L.)
RGB fH: 15-91 kHz, fV: 24-120 Hz, dot clock: up to 162 MHz
YPBPR (YCBCR) fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
Video/YC fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis Vertical ±60% (powered)
Shift Horizontal ±30% (powered)
Keystone correction range*5 Vertical ±30°, horizontal ±25°
Installation Ceiling/floor, front/rear
Built-in speaker 3.7 cm round shape × 1, output power: 10.0 W (monaural)
Terminals HDMI IN HDMI 19-pin x 2 (Deep Color, compatible with HDCP),
audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
RGB 1 IN BNC x 5 (RGB or YPBPR/YCBCR x 1), shared with VIDEO IN (S-video/composite video)
RGB 2 IN D-Sub HD 15-pin (female) x 1
VIDEO IN Pin jack x 1 (composite video)
MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB x 1) (compatible with RGB or YPBPR/YCBCR)
AUDIO IN Pin jack x 2 (L/R x 1), M3 x 2 (L-R x 2)
AUDIO OUT M3 x 1 (L-R x 1) for output (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
REMOTE 1 IN M3 x 1 for wired remote control
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX, compatible with PJLink™
DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connection,
100Base-TX, compatible with PJLink™, HDCP, Deep Color
USB-A 2 (Network/Wireless x 1, 5 V/0.9 A x 1)
Operation noise*3 35 dB (lamp power: Normal), 29 dB (lamp power: ECO)
Filter x1, replacement cycle: up to 15,000 hours*6
Mechanical shutter Yes
Cabinet materials Molded plastic (PC + ABS)
Dimensions (W x H x D) PT-EW550L 498 x 145*7 x 398.3 mm (19-19/32 x 5-23/32*7 x 15-11/16 in) (with supplied lens)
Weight*8 PT-EW550L Approx. 9.0 kg (19.8 lbs) (with supplied lens)
Operating environment Operating temperature: 0-45 °C (32-113 °F)*9,
operating humidity: 20-80 % (no condensation)
Note: The PT-EZ590L/EW650L/EW550L delivers the same performance as the PT-EZ590/EW650/EW550, but comes without a lens.
*1 When Standby Mode is set to Eco, network functions such as power on over LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2 This is the maximum value when the lamp is turned on for 2 hours and off for 0.25 hours. If the lamp is turned on more times or kept on for a long time, lamp replacement cycle will shorten. Usage environment affects the duration of the lamp.
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Input signals that exceed supported resolution will be converted.
*5 With the supplied lens. Value differs when the correction for both directions is operated.
*6 Usage environment affects the duration of the filter.
*7 With legs at shortest position.
*8 Average value. May differ depending on models.
*9 Operating temperature range is 0 °C to 40 °C (32 °F to 104 °F) when used at altitudes from 1,400 m to 2,700 m (4,593 ft to 8,858 ft) above sea level. Also, if ambient temperature exceeds 40 °C (104 °F) (35 °C [95 °F] at high altitude), lamp power may automatically switch to Eco to in order to protect the projector.
ایران پاناسونیک
تلفن:77615100
آدرس سایت:www.iranpanasonic.ir
