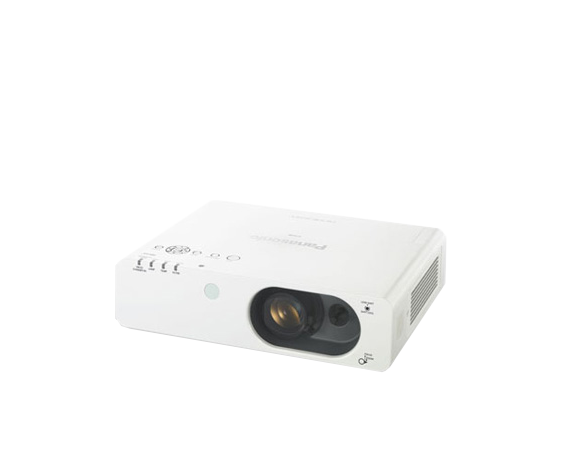

ویدئو پروژکتور پاناسونیک PT-FX400

ویدئو پروژکتور پاناسونیک PT-FX400

General  Power supply                        100 - 240 V AC, 3.9 - 1.4 A, 50/60 Hz
              Power consumption              330 W (0.3 W at 100 - 120 V AC, 0.4 W at 220 - 240 V AC when standby mode set to eco*1, 9 W when standby mode set to normal, 20 W when standby mode set to normal and audio monitor out.)
              LCD panel  Panel size           20.3 mm (0.8 inches) diagonal (4:3 aspect ratio)
                                  Display method Transparent LCD panel (× 3, R/G/B)
                                  Pixels                 786,432 (1,024 × 768) × 3, total of 2,359,296 pixels
                                  Pixel configuration       Stripe
              Lens                                      Manual 2× zoom (throw ratio: 1.48 - 2.96:1), manual focus F 1.7 - 2.6, f 24.0 - 47.2 mm
              Lamp                                     250 W UHM lamp (The lamp replacement cycle is 6,000 hours.*2)
              Screen size (diagonal)           0.84 - 7.62 m (33 - 300 inches), 4:3 aspect ratio
              Brightness*3                         4,000 lm (lamp mode: normal)
              Center-to-corner uniformity*3         80%
              Contrast*3                            600:1 (full on/full off)
              Resolution                             1,024 × 768 pixels (Input signals that exceed this resolution will be converted to 1,024 × 768 pixels.)
              Scanning frequency              HDMI/DVI-I (digital)           fH: 27.0 kHz - 68.7 kHz; fV: 24.0 Hz - 85.0 Hz; dot clock: 25.2 MHz - 148.5 MHz
                                  DVI-I (analog)/RGB    fH: 15 .6 kHz - 91.1 kHz; fV: 24.0 Hz - 85.1 Hz; dot clock: 162 MHz or lower
                                  YPBPR (YCBCR)       fH: 15.63 kHz; fV: 50 Hz [576i (625i)]
fH: 31.25 kHz; fV: 50 Hz [576p (625p)]
fH: 37.50 kHz; fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz; fV: 50 Hz [1080 (1125)/50i]
fH: 33.75 kHz; fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
                                  Video/S-Video  fH: 15.75 kHz; fV: 60 Hz (NTSC/NTSC4.43/PAL-M/PAL60), fH: 15.63 kHz; fV: 50 Hz (PAL/PAL-N/SECAM)
              Optical axis shift                   Vertical           ±50% from center of screen (manual)
                                  Horizontal          ±27% from center of screen (manual)
              Keystone correction range    Vertical: ±30°
              Installation                            Ceiling/desk, front/rear
              Built-in speaker                     Output power: 5.0 W (monaural)
              Terminals    HDMI IN          HDMI 19-pin × 1 (Deep Color, compatible with HDCP)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/60p, 1080/50p,
VGA (640 × 480) - WSXGA+ (1,680 × 1,050), compatible with non-interlaced signals only;
dot clock: 25.2 - 146.25 MHz;
Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
                                  DVI-I IN           DVI-I 29-pin × 1
Digital: (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/60p, 1080/50p,
VGA (640 × 480) - WSXGA+ (1,680 × 1,050), compatible with non-interlaced signals only;
dot clock: 25.2 - 146.25 MHz;
Analog: (RGB/YPBPR (YCBCR))
                                  COMPUTER (RGB) IN          D-sub HD 15-pin (female) × 1 (RGB/YPBPR × 1)
                                  VIDEO IN        RCA pin × 1 (composite video)
                                  S-VIDEO IN     Mini DIN 4-pin × 1 (S-Video)
                                  AUDIO IN 1     M3 × 1 (L, R × 1), 0.5 Vrms
                                  AUDIO IN 2     M3 × 1 (L, R × 1), 0.5 Vrms
                                  AUDIO IN 3     RCA pin × 2 (L, R × 1), 0.5 Vrms
                                  AUDIO OUT    M3 × 1 (L, R × 1) (monitor out: 0 - 2.0 Vrms, variable)
                                  SERIAL IN       D-sub 9-pin (female) × 1 for external control (RS-232C compliant)
                                  LAN                  RJ-45 × 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™)
                                  WIRELESS MODULE           Connector for optional wireless module ET-WM200 × 1
              Cabinet materials                  Molded plastic (PC+ABS)
              Dimensions (W × H × D)      430 × 125.5*4 × 323 mm (16 - 15/16˝ × 4 - 15/16˝ *4 × 12-23/32˝ ) (Protruding parts not included)
              Weight                                  Approximately 6.0 kg (13.2 lbs.)
              Operating environment         Operating temperature: 0°C - 40°C (32°F - 104°F)*5; operating humidity: 20% - 80% (no condensation)

NOTE                                                  *1 When the standby mode is set to eco, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2 This value is calculated by continuously turning the lamp on for 2 hours and off for 0.25 hours. The lamp replacement cycle will decrease if the lamp is turned on/off more frequently, or if it is left on for longer intervals.
*3 Measurement, measuring conditions and method of notation all comply with ISO 21118 international standards.
*4 With legs at shortest position.
*5 The operating temperature range is 0°C to 35°C (32°F to 95°F) when used in High- Altitude mode (1,400 m to 2,700 m (4,593 ft to 8,858 ft)).


ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:[phone]

ویدئو پروژکتور پاناسونیک PT-FW430

ویدئو پروژکتور پاناسونیک PT-FW430

General  Power supply                        100 - 240 V AC, 3.9 - 1.4 A, 50/60 Hz
              Power consumption              330 W (0.3 W at 100 - 120 V AC, 0.4 W at 220 - 240 V AC when standby mode set to eco*1, 9 W when standby mode set to normal, 20 W when standby mode set to normal and audio monitor out.)
              LCD panel  Panel size           18.9 mm (0.74 inches) diagonal (16:10 aspect ratio)
                                  Display method Transparent LCD panel (× 3, R/G/B)
                                  Pixels                 1,024,000 (1,280 × 800) × 3, total of 3,072,000 pixels
                                  Pixel configuration       Stripe
              Lens                                      Manual 2× zoom (throw ratio: 1.34 - 2.68:1), manual focus F 1.7 - 2.6, f 21.6 - 43.0 mm
              Lamp                                     250 W UHM lamp (The lamp replacement cycle is 6,000 hours.*2)
              Screen size (diagonal)           0.84 - 7.62 m (33 - 300 inches), 16:10 aspect ratio
              Brightness*3                         3,500 lm (lamp mode: normal)
              Center-to-corner uniformity*3         80%
              Contrast*3                            600:1 (full on/full off)
              Resolution                             1,280 × 800 pixels (Input signals that exceed this resolution will be converted to 1,280 × 800 pixels.)
              Scanning frequency              HDMI/DVI-I (digital)           fH: 27.0 kHz - 68.7 kHz; fV: 24.0 Hz - 85.0 Hz; dot clock: 25.2 MHz - 148.5 MHz
                                  DVI-I (analog)/RGB    fH: 15 .6 kHz - 91.1 kHz; fV: 24.0 Hz - 85.1 Hz; dot clock: 162 MHz or lower
                                  YPBPR (YCBCR)       fH: 15.75 kHz; fV: 60 Hz [480i (525i)]
fH: 31.50 kHz; fV: 60 Hz [480p (525p)]
fH: 45.00 kHz; fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz; fV: 60 Hz [1080 (1125)/60i]
fH: 27.00 kHz; fV: 24 Hz [1080 (1125)/24p]
fH: 67.50 kHz; fV: 60 Hz [1080 (1125)/60p]
                                  Video/S-Video  fH: 15.75 kHz; fV: 60 Hz (NTSC/NTSC4.43/PAL-M/PAL60), fH: 15.63 kHz; fV: 50 Hz (PAL/PAL-N/SECAM)
              Optical axis shift                   Vertical           ±51% from center of screen (manual)
                                  Horizontal          ±24% from center of screen (manual)
              Keystone correction range    Vertical: ±30°
              Installation                            Ceiling/desk, front/rear
              Built-in speaker                     Output power: 5.0 W (monaural)
              Terminals    HDMI IN          HDMI 19-pin × 1 (Deep Color, compatible with HDCP)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/60p, 1080/50p,
VGA (640 × 480) - WSXGA+ (1,680 × 1,050), compatible with non-interlaced signals only;
dot clock: 25.2 - 146.25 MHz;
Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
                                  DVI-I IN           DVI-I 29-pin × 1
Digital: (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/60p, 1080/50p,
VGA (640 × 480) - WSXGA+ (1,680 × 1,050), compatible with non-interlaced signals only;
dot clock: 25.2 - 146.25 MHz;
Analog: (RGB/YPBPR (YCBCR))
                                  COMPUTER (RGB) IN          D-sub HD 15-pin (female) × 1 (RGB/YPBPR × 1)
                                  VIDEO IN        RCA pin × 1 (composite video)
                                  S-VIDEO IN     Mini DIN 4-pin × 1 (S-Video)
                                  AUDIO IN 1     M3 × 1 (L, R × 1), 0.5 Vrms
                                  AUDIO IN 2     M3 × 1 (L, R × 1), 0.5 Vrms
                                  AUDIO IN 3     RCA pin × 2 (L, R × 1), 0.5 Vrms
                                  AUDIO OUT    M3 × 1 (L, R × 1) (monitor out: 0 - 2.0 Vrms, variable)
                                  SERIAL IN       D-sub 9-pin (female) × 1 for external control (RS-232C compliant)
                                  LAN                  RJ-45 × 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™)
                                  WIRELESS MODULE           Connector for optional wireless module ET-WM200 × 1
              Cabinet materials                  Molded plastic (PC+ABS)
              Dimensions (W × H × D)      430 × 125.5*4 × 323 mm (16 - 15/16˝ × 4 - 15/16˝ *4 × 12-23/32˝ ) (Protruding parts not included)
              Weight                                  Approximately 6.0 kg (13.2 lbs.)
              Operating environment         Operating temperature: 0°C - 40°C (32°F - 104°F)*5; operating humidity: 20% - 80% (no condensation)

NOTE                                                  *1 When the standby mode is set to eco, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2 This value is calculated by continuously turning the lamp on for 2 hours and off for 0.25 hours. The lamp replacement cycle will decrease if the lamp is turned on/off more frequently, or if it is left on for longer intervals.
*3 Measurement, measuring conditions and method of notation all comply with ISO 21118 international standards.
*4 With legs at shortest position.
*5 The operating temperature range is 0°C to 35°C (32°F to 95°F) when used in High- Altitude mode (1,400 m to 2,700 m (4,593 ft to 8,858 ft)).

ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن:[phone]

ویدئو پروژکتور پاناسونیک PT-FZ570

مشخصات:

High Picture Quality

• High brightness of up to 5,000 lm*1 from a compact body
• Dynamic 10,000:1 contrast performance with iris
• High resolution up to WUXGA*2 for full HD pictures
• Daylight View Basic function ensures clear and vivid image quality in bright environments
• DICOM simulation mode*3 for medical presentations
• Color Adjustment function to correct color variations in multi-projector applications


Low TCO and Easy Maintenance

• Long lamp replacement cycle: up to 8,000 hours (Eco) / 6,000 hours (Normal)*4
• Reusable Super Eco Filter replacement extended to 16,000 hours*4
• Dust-resistant cabinet with one-way air flow design
• Easy access to lamp and filter when mounted on ceiling
• Ultra-quiet 29 dB*5 operation on Eco mode


System Flexibility

• DIGITAL LINK supports transmission of uncompressed full HD video, audio, and control commands through a single CAT 5e or higher STP cable for distances of up to 150 m (492 ft)*6
• Wide-range manual lens shift, 1.8x zoom lens for picture adjustment
• Corner keystone & curved screen correction
• Wireless projection with optional dongle (ET-WML100)
• Mechanical shutter
• Network function via LAN for easy remote operation
• Supports free Multi Projector Monitoring & Control Software


*1 Brightness by model: PT-FX500 (5,000 lm) and PT-FZ570/FW530 (4,500 lm), *2 For PT-FZ570 only. Please refer chart above for resolution of each model, *3 This product is not a medical instrument. Do not use for actual medical diagnosis, *4 The usage environment affects the lamp replacement cycle and the duration of the filter, *5 35 dB with lamp power set to Normal, *6 150 m (492 ft) transmission available only with ET-YFB200G DIGITAL LINK Switcher for signals up to 1080/60p (dot-clock frequency 148.5 MHz), Transmission distance is up to 100 m (328 ft) in other cases.


ایران پاناسونیک
تلفن:[phone]

آدرس سایت:www.iranpanasonic.ir

ویدئو پروژکتور پاناسونیک PT-EW530

مشخصات:


General  Power supply                              100 – 240 V AC, 50/60 Hz
              Power consumption                    490 W (0.4 W with STANDBY MODE set to ECO,*1 11 W with STANDBY MODE set to NETWORK.)
              LCD panel    Panel size               19.0 mm (0.75 inches) diagonal (16:10 aspect ratio)
                                    Display method     Transparent LCD panel (x 3, R/G/B)
                                    Drive method        Active matrix
                                    Pixels                     1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels
              Lens              PT-EW530 / EX500   Powered zoom (throw ratio 1.7–2.8:1), powered focus F 1.7–2.3, f 26.9–45.4 mm
                                    PT-EW530L / EX500L          Optional powered zoom/focus lenses and fixed-focus lens
              Lamp                                           330 W UHM lamp x 1, lamp replacement cycle: 4,000 hours*2
              Screen size (diagonal)                 1.02–10.16 m (40–400 inches)
(16:10 aspect ratio)
              Color reproducibility                   Full color (16,777,216 colors)
              Brightness*3                               4,500 lm (lamp power: Auto/Normal)
              Center-to-corner uniformity*3    90%
              Contrast*3                                  2,000:1 (full on/off, lamp power: Auto/Normal)
              Resolution                                   1,280 x 800 pixels*4
              Scanning frequency                    HDMI/DVI-D      (Horizontal) 26–80 kHz; (Vertical) 23–85 Hz; (Dot clock) 162 MHz or lower
                                    RGB (analog)        (Horizontal) 15–120 kHz; (Vertical) 48–100 Hz; (Dot clock) 230 MHz or lower
(Signals exceeding the dot clock rate of 140 MHz are downsampled.)
                                    YPBPR (YCBCR)     fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 28.13 kHz, fV: 50 Hz [1080/25sF]
fH: 27.00 kHz, fV: 48 Hz [1080/24sF]
fH: 33.75 kHz, fV: 60 Hz [1080/30sF]
fH: 56.25 kHz, fV: 50 Hz [1080/50p]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080/25p]
fH: 27.00 kHz, fV: 24 Hz [1080/24p]
fH: 33.75 kHz, fV: 30 Hz [1080/30p]
fH: 67.50 kHz, fV: 60 Hz [1080/60p]
                                    Video/S-Video      fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
              Optical axis shift*5                     Vertical     ±60% from center of screen (powered)
                                    Horizontal             ±10% from center of screen (powered)
              Keystone correction range          Vertical: ±40°*6
              Installation                                  Ceiling/floor, front/rear
              Built-in speaker                           3.7 cm round shape x 1, output power 10.0 W (monaural)
              Terminals      INPUT 1 - DVI-D IN            DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
                                    INPUT 1 - HDMI IN HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
                                    INPUT 1 - RGB IN   D-sub HD 15-pin (female) x 1 (RGB x 1)
                                    INPUT 2 - RGB 5BNC IN/ VIDEO IN       BNC x 5 (RGB/YPBPR/YCBCR x 1), shared with VIDEO IN (BNC x 1) (composite video)
                                    INPUT 3 - COMPONENT/ VIDEO IN        RCA x 3 (YPBPR/YCBCR/composite video x 1)
                                    INPUT 3 - S-VIDEO IN       Mini DIN 4-pin x 1
                                    MONITOR OUT  D-sub HD 15-pin (female) x 1 (RGB x 1)
                                    AUDIO IN 1        M3 x 1 (L-R x 1)
                                    AUDIO IN 2        M3 x 1 (L-R x 1)
                                    AUDIO IN 3        RCA pin x 2 (L/R x 1) for VIDEO/S-VIDEO input
                                    AUDIO OUT        M3 x 1 (L-R x 1) for output (variable)
                                    SERIAL IN          D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
                                    REMOTE IN        M3 Jack x 1 (for wired remote control)
                                    LAN                      RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T, compliant with PJLink™ (class 1))
              Cabinet materials                        Molded plastic (PC + ABS)
              Dimensions (W x H x D)            PT-EW530 / EX500         489.5 x 164*8 x 434 mm (19.3" x 6.5"*8 x 17.1") (with supplied lens)
                                    PT-EW530L / EX500L          489.5 x 164*8 x 370 mm (19.3" x 6.5"*8 x 14.6") (without lens)
              Weightl*7     PT-EW530 / EX500   Approximately 10.2 kg (22.5 lbs) (with supplied lens)
                                    PT-EW530L / EX500L          Approximately 9.5 kg (20.9 lbs) (with supplied lens)
              Noise level*7                              37 dB (Lamp power: Normal); 31 dB (Lamp power: Eco1 or Eco2)
              Operating temperature                0°C–40°C (32°F–104°F)*9
              Operating humidity                     20% - 80% (no condensation)

NOTE                                                        * Product numbers vary depending on the market. The general guideline is as follows:
The product numbers in the Americas and Taiwan are PT-EW530U/PT-EW530UL and PT-EX500U/PT-EX500UL.
The product numbers in Europe, CIS, Asia (except Taiwan), Oceania, Middle East, and Africa are PT-EW530E/PT-EW530EL and PT-EX500E/PT-EX500EL.
*The PT-EW530L/EX500L delivers the same performance as the PT-EW530/EX500, but comes without a lens.

*1 When the STANDBY MODE is set to ECO, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2 This is the maximum value when the lamp power is set to Eco1 or Eco2 mode where the lamp is turned on for 2 hours and off for 0.25 hours. If the lamp is turned on more times or kept on for a long time, the lamp replacement cycle will shorten. In Normal mode, the lamp replacement cycle is 3,000 hours. The usage environment affects the duration of the lamp
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Input signals that exceed the native resolution will be converted to the native resolution.
*5 The axis shift function cannot be used with the ET-ELW21.
*6 With the supplied lens. Value differs when the correction for both directions is operated.
*7 Average value. May differ depending on models.
*8 With legs at shortest position.
*9 The operating temperature range is 0 °C to 30 °C (32 °F to 86 °F) when the fan control is set to ON 1 for altitudes from 1,000 m to 2,000 m (3,281 ft to 6,562 ft) above sea level, 0 °C to 30 °C (32 °F to 86 °F) when the fan control is set to ON 2 for altitudes from 2,000 m to 2,700 m (6,562 ft to 8,858 ft) above sea level

ایران پاناسونیک
تلفن:[phone]

آدرس سایت:www.iranpanasonic.ir

ویدئو پروژکتور پاناسونیک PT-EW630

مشخصات:

General  Power supply                               100 – 240 V AC, 50/60 Hz
              Power consumption                     490 W (0.4 W with STANDBY MODE set to ECO,*1 11 W with STANDBY MODE set to NETWORK.)
              LCD panel    Panel size               19.0 mm (0.75 inches) diagonal (16:10 aspect ratio)
                                    Display method     Transparent LCD panel (x 3, R/G/B)
                                    Drive method        Active matrix
                                    Pixels                     1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels
              Lens              PT-EZ570 / EW630 / EX600 Powered zoom (throw ratio 1.7–2.8:1), powered focus F 1.7–2.3, f 26.9–45.4 mm
                                    PT-EZ570L / EW630L / EX600L     Optional powered zoom/focus lenses and fixed-focus lens
              Lamp                                           330 W UHM lamp x 1, lamp replacement cycle: 4,000 hours*2
              Screen size (diagonal)                  1.02–10.16 m (40–400 inches)
(16:10 aspect ratio)
              Color reproducibility                   Full color (16,777,216 colors)
              Brightness*3                                5,500 lm (lamp power: Auto/Normal)
              Center-to-corner uniformity*3    90%
              Contrast*3                                   5,000:1 (full on/off, lamp power: Auto/Normal, iris: On)
              Resolution                                   1,280 x 800 pixels*4
              Scanning frequency                     HDMI/DVI-D     (Horizontal) 26–80 kHz; (Vertical) 23–85 Hz; (Dot clock) 162 MHz or lower
                                    RGB (analog)        (Horizontal) 15–120 kHz;
(Vertical) 48–100 Hz;
(Dot clock) 230 MHz or lower
(Signals exceeding the dot clock rate of 140 MHz are downsampled.)
                                    YPBPR (YCBCR)    fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 28.13 kHz, fV: 50 Hz [1080/25sF]
fH: 27.00 kHz, fV: 48 Hz [1080/24sF]
fH: 33.75 kHz, fV: 60 Hz [1080/30sF]
fH: 56.25 kHz, fV: 50 Hz [1080/50p]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080/25p]
fH: 27.00 kHz, fV: 24 Hz [1080/24p]
fH: 33.75 kHz, fV: 30 Hz [1080/30p]
fH: 67.50 kHz, fV: 60 Hz [1080/60p]
                                    Video/S-Video      fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
              Optical axis shift*5                     Vertical    ±60% from center of screen (powered)
                                    Horizontal              ±10% from center of screen (powered)
              Keystone correction range           Horizontal: ±30°*6, vertical: ±40°*6
              Installation                                   Ceiling/floor, front/rear
              Built-in speaker                           3.7 cm round shape x 1, output power 10.0 W (monaural)
              Terminals       INPUT 1 - DVI-D IN           DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
                                    INPUT 1 - HDMI IN            HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
                                    INPUT 1 - RGB IN   D-sub HD 15-pin (female) x 1 (RGB x 1)
                                    INPUT 2 - RGB 5BNC IN/ VIDEO IN       BNC x 5 (RGB/YPBPR/YCBCR x 1), shared with VIDEO IN (BNC x 1) (composite video)
                                    INPUT 3 - COMPONENT/ VIDEO IN       RCA x 3 (YPBPR/YCBCR/composite video x 1)
                                    INPUT 3 - S-VIDEO IN       Mini DIN 4-pin x 1
                                    MONITOR OUT  D-sub HD 15-pin (female) x 1 (RGB x 1)
                                    AUDIO IN 1         M3 x 1 (L-R x 1)
                                    AUDIO IN 2         M3 x 1 (L-R x 1)
                                    AUDIO IN 3         RCA pin x 2 (L/R x 1) for VIDEO/S-VIDEO input
                                    AUDIO OUT        M3 x 1 (L-R x 1) for output (variable)
                                    SERIAL IN           D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
                                    REMOTE IN         M3 Jack x 1 (for wired remote control)
                                    LAN                      RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T, compliant with PJLink™ (class 1))
              Cabinet materials                         Molded plastic (PC + ABS)
              Dimensions (W x H x D)             PT-EZ570 / EW630 / EX600      489.5 x 164*8 x 434 mm (19.3" x 6.5"*8 x 17.1") (with supplied lens)
                                    PT-EZ570L / EW630L / EX600L     489.5 x 164*8 x 370 mm (19.3" x 6.5"*8 x 14.6") (without lens)
              Weightl*7     PT-EZ570 / EW630 / EX600 Approximately 10.3 kg (22.7 lbs) (with supplied lens)
                                    PT-EZ570L / EW630L / EX600L     Approximately 9.6 kg (21.2 lbs) (with supplied lens)
              Noise level*7                               37 dB (Lamp power: Normal); 31 dB (Lamp power: Eco1 or Eco2)
              Operating temperature                 0°C–40°C (32°F–104°F)*9
              Operating humidity                     20% - 80% (no condensation)

NOTE                                                        * Product numbers vary depending on the market. The general guideline is as follows:
The product numbers in the Americas and Taiwan are PT-EZ570U/PT-EZ570UL, PT-EW630U/PT-EW630UL and PT-EX600U/PT-EX600UL.
The product numbers in Europe, CIS, Asia (except Taiwan), Oceania, Middle East, and Africa are PT-EZ570E/PT-EZ570EL, PT-EW630E/PT-EW630EL and PT-EX600E/PT-EX600EL.
*The PT-EZ570L/EW630L/EX600L delivers the same performance as the PT-EZ570/EW630/EX600, but comes without a lens.

*1 When the STANDBY MODE is set to ECO, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2 This is the maximum value when the lamp power is set to Eco1 or Eco2 mode where the lamp is turned on for 2 hours and off for 0.25 hours. If the lamp is turned on more times or kept on for a long time, the lamp replacement cycle will shorten. In Normal mode, the lamp replacement cycle is 3,000 hours. The usage environment affects the duration of the lamp
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Input signals that exceed the native resolution will be converted to the native resolution.
*5 The axis shift function cannot be used with the ET-ELW21 .
*6 With the supplied lens. Value differs when the correction for both directions is operated.
*7 Average value. May differ depending on models.
*8 With legs at shortest position.
*9 The operating temperature range is 0 °C to 30 °C (32 °F to 86 °F) when the fan control is set to ON 1 for altitudes from 1,000 m to 2,000 m (3,281 ft to 6,562 ft) above sea level, 0 °C to 30 °C (32 °F to 86 °F) when the fan control is set to ON 2 for altitudes from 2,000 m to 2,700 m (6,562 ft to 8,858 ft) above sea level.


ایران پاناسونیک
تلفن:[phone]

آدرس سایت:www.iranpanasonic.ir
